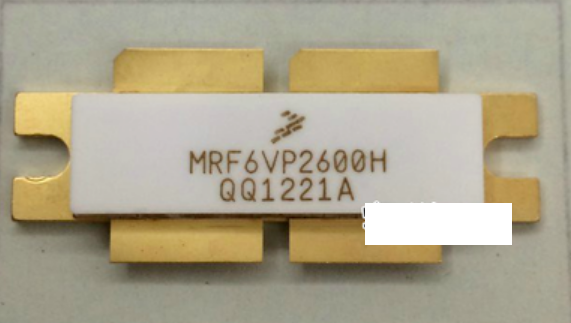

MRF6VP2600H: 2-500 MHz, 600 W, 50 V Lateral N-Channel Broadband RF Power MOSFET

Overview
The MRF6VP2600HR6 is designed primarily for wideband applications with frequencies up to 500 MHz. Device is unmatched and is suitable for use in broadcast applications.

Features
Typical DVB-T OFDM Performance: VDD = 50 Volts, IDQ = 2600 mA, Pout = 125 Watts Avg., f = 225 MHz, Channel Bandwidth = 7.61 MHz, Input Signal PAR = 9.3 dB @ 0.01% Probability on CCDF.Power Gain: 25 dBDrain Efficiency: 28.5%ACPR @ 4 MHz Offset: –61 dBc @ 4 kHz Bandwidth
Typical Pulsed Performance: VDD = 50 Volts, IDQ = 2600 mA, Pout = 600 Watts Peak, f = 225 MHz, Pulse Width = 100 µsec, Duty Cycle = 20%Power Gain: 25.3 dBDrain Efficiency: 59%
Capable of Handling 10:1 VSWR, @ 50 Vdc, 225 MHz, 600 Watts Peak Power, Pulse Width = 100 µsec, Duty Cycle = 20%
Characterized with Series Equivalent Large–Signal Impedance Parameters
CW Operation Capability with Adequate Cooling
Qualified Up to a Maximum of 50 VDD Operation
Integrated ESD Protection
Designed for Push-Pull Operation
Greater Negative Gate-Source Voltage Range for Improved Class C Operation
RoHS Compliant
In Tape and Reel. R6 Suffix = 150 Units per 56 mm, 13 inch Reel.

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter ：100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
