MRFE6VP61K25H 1.8-600 MHz 1250 W CW 50 V Wideband RF Power LDMOS Transistor

Overview
These high ruggedness devices, MRFE6VP61K25H, MRFE6VP61K25HS and MRFE6VP61K25GS,are designed for use in high VSWR industrial (including laser and plasma exciters), broadcast (analog and digital), aerospace and radio/land mobile applications. They are unmatched input and output designs allowing wide frequency range utilization, between 1.8 and 600 MHz.

Features
Unmatched Input and Output Allowing Wide Frequency Range Utilization
Device can be used Single-Ended or in a Push-Pull Configuration
Qualified Up to a Maximum of 50 VDD Operation
Characterized from 30 V to 50 V for Extended Power Range
Suitable for Linear Application with Appropriate Biasing
Integrated ESD Protection with Greater Negative Gate-Source Voltage Range for Improved Class C Operation
Characterized with Series Equivalent Large-Signal Impedance Parameters
RoHS Compliant
In Tape and Reel. R6 Suffix = 150 Units, 56 mm Tape Width, 13-inch Reel.
These products are included in our product longevity program with assured supply for a minimum of 15 years after launch.

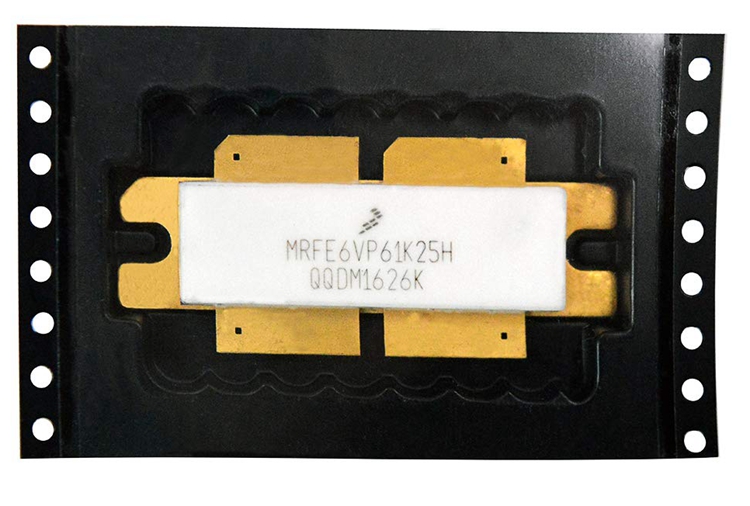

NI-1230H-4S, NI-1230S-4S, NI-1230GS-4L Package Image

Signal Type	Pout (W)	f (MHz)	G_ps (dB)	η_D (%)
Pulse (100 µsec, 20% Duty Cycle)	1250 Peak	230	24.0	74.0
CW	1250 CW	230	22.9	74.6

Frequency (MHz)	Signal Type	Pout (W)	G_ps (dB)	η_D (%)
27	CW	1300	27	81
40	CW	1300	26	85
81.36	CW	1250	27	84
87.5-108	CW	1100	24	80
144-148	CW	1250	26	78
170-230	DVBT	225	25	30
352	Pulse (200 µsec, 20% Duty Cycle)	1250	21.5	66
352	CW	1150	20.5	68
500	CW	1000	18	58

Frequency (MHz)	Signal Type	VSWR	Pout (W)	Test Voltage	Result
230	Pulse (100 µsec, 20% Duty Cycle)	>65:1 at all Phase Angles	1500 Peak (3 dB Overdrive)	50	No Device Degradation
