    FMUSER FU-X01CK NEW 1W FM Transmitter Complete Antenna Set (8G TF Card+Battery+Bluetooth)

    Total:188 USD

    Item:145 USD   Shipping:43 USD

    Integrated Version FMUSER NEW 1W FM Transmitter Upgraded 1 watt FM radio broadcaster  FU-X01CK Complete Antenna Set (8G TF Card+Battery)

    For small FM radio stations/school/stadium/conference/travel

    1w fm transmitter

    FU-X01CK Fm transmitter is FMUSER’s new cost effective design integrating TF Card mp3 reader,bluetooth,rechargeable Battery power function  in one small box.


    FU-X01CK is designed for home use ,it is easy to change frequency due to its worldwide band of 76-108mhz.

    The audio pre-emphasis is also adjustable between 50US(EURO) / 75US(USA).

    The transmitting power is also tunable from 0-11 steps to control the cover range.

    Another surprising innovation is the Auto-shut down function, when there is no audio input, the device will be powered off automatically to save the power. All the setting will be saved and be the same on next boost.

    1w fm transmitter range

    1w fm transmitter kit

    1w fm radio station transmitter

    Features
    * User-friendly operation

    Auto power off when no audio IN
    RCA and 3.5mm interface for audio line-in
    3 modules optional, TF card MP3 function, Bluetooth audio, rechargeable battery.
    Microphone input volume will be tuned up in priority when there is an input, the main volume will be tuned down automatically.
    Worldwide band 76~108Mhz for any country, easy to setup and change
    RF output power is adjustable from 0~1w by 11 levels. Level 0 means no power is transmitted out.
    Audio pre-emphasis is adjustable between 50US(EURO) / 75US(USA)
    Mono and stereo switchable
    Broadcast distance: 0-1km adjustable(The distance is estimated in open environment and just for reference)
    Current settings will be memorized, it automatically starts from the previous settings when the transmitter is turned on again.


    Specifications

    RF Parameters

    Frequency range: 76~108MHZ(frequency band may customized when MOQ is over 100pcs)
    Frequency stepping: 100KHZ,0.1MHZ
    Frequency deviation: +-75KHZ
    RF Power: 0-1W  ,11 levels adjustable.
    Harmonic and clatter: <=-60dB
    SNO Rate:>=60dB
    RF output: TNC-K,50 Ohm


    Audio Parameters

    Audio input:analog audio 3.5mm in ,RCA in
    Mic input: 3.5mm in
    Audio Input Channel:Line in (3.5mm/RCA), TF Card MP3,Bluetooth
    Audio input level:15dBV
    Audio distortion:<=0.2%
    Audio frequency response:50HZ~15000HZ
    Stereo seperation:>=40dB
    Pre-emphasis:50US/ 75US switchable
    Audio control:electronic volume control,11 levels adjustable from 0~10, level 0 means no volume output.
    MIC control: electronic volume control,11 levels adjustable from 0~10, level 0 means no volume output.


    Other Parameters:

    Work voltage: 12V
    Work current: <0.4A(At Maximum power mode)
    Work temperature: -10~45
    Product dimension: 162*120*40MM





    hlly 1w fm radio station transmitter


    transmitter m 1w

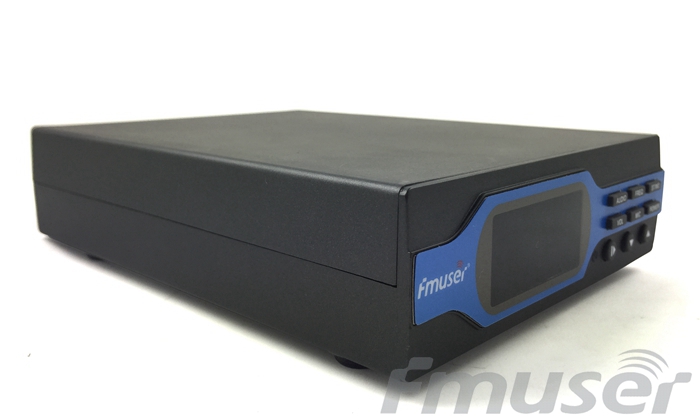

    Front Panel
    1w fm transmitter

    ①LED panel ②Volume

    ③On/Off & Play/Pause

    ④Decrease/Next

    ⑤Increase/Previous

    ⑥Power Output

    ⑦Microphone Volume

    ⑧Switch audio source

    ⑨Frequency Regulation

    ⑩ Press: Switch Stereo/Mono

        Press&Hold: Switch Pre-emphasis (50/75us)

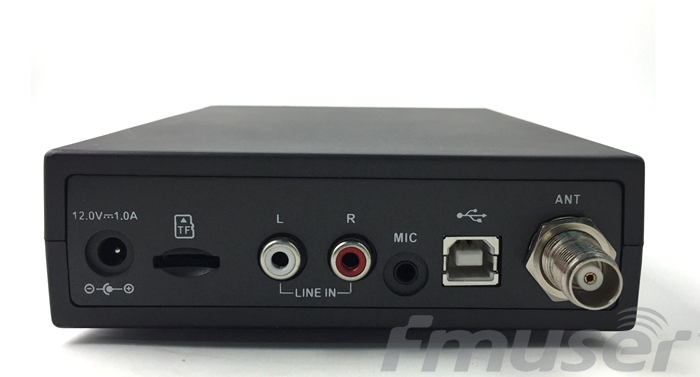

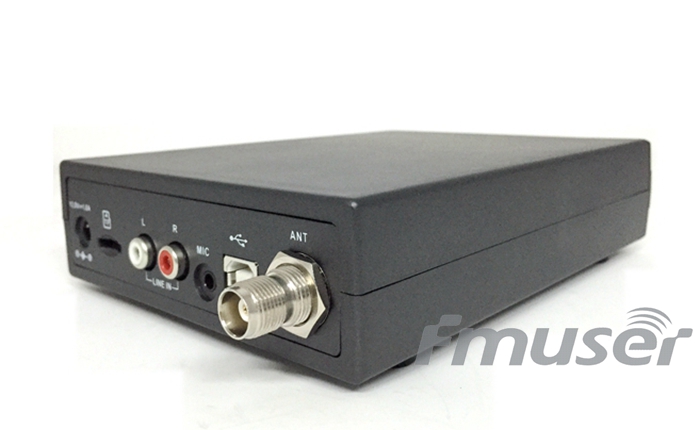

    Rear Panel

    1w radio station transmitter

    ①Power Supply Input (12V 1.0A)

    ②TF Card Slot

    ③Line In (RCA-L)

    Line In (RCA-R)

    ⑤MIC Input

    ⑥Data Communication Interface

    ⑦Antenna Output (TNC-J)

    LCD Panel


    1w fm transmitter for radio station


    ①LINE-in Volume   ②Power Output  ③MIC Volume   ④Stereo/Mono  ⑤Battery Power   ⑥Broadcast Frequency   ⑦ Audio Input source ⑧Pre-emphasis

    ⑨Serial number of song playing ( Under TF Card play mode)

    ⑩ Audio Play mode-TF card  Bluetooth connected





    Principle Chart



    transmitter 1w for radio station

    Package Include:

    1* FU-X01C Integrated 1w FM transmitter (with Bluetooth, TF card and Battery)

    1* Antenna

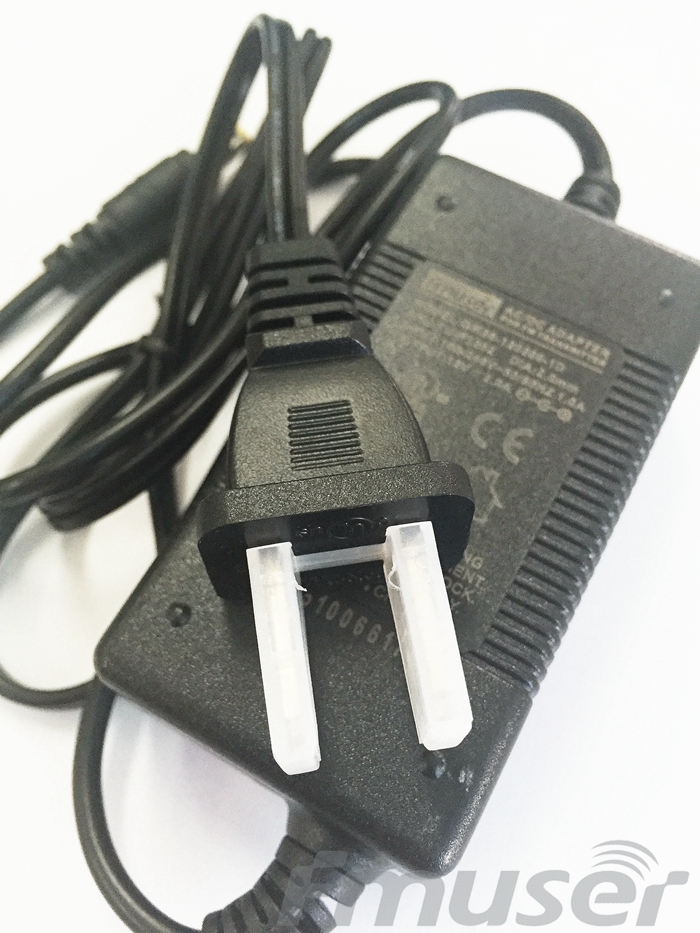

    1* Power adapter

    1* Line-in Cable

    1* USB cable

    fm stereo transmitter 1w

    =================================================

    Other configurations are optional for this transmitter(At different cost):

    fmuser transmitter kit



    3 Outstanding Configurations:

    No.1: TF Card MP3play module
    MP3 Play: Play/Pause, Previous, Next.
    MP3 Play: switch to MP3 mode, press play button to play loop.
    MP3 dynamic range: 90dB
    MP3 SNO Rate:85dB
    MP3 file:Support Sampling rate(KHZ)8/11.025/12/16/22.05/24/32/44.1/48(Support all bit rate 11172-3 and ISO13813-3 LAYER3 audio decode)
    MP3 support TF card: Support FAT16、FAT32 document system,supports TF cards of 32G maximum
    MP3 support file:MP3 and WAV format audio. (Other audio formats are not supported to play, the player module  could be damaged by copying the files in others unsupported formats)
    MP3 display:switch to the MP3 mode, the LCD will display general music data, the
    song details will be shown by 3 seconds when it’s playing.
    MP3 external support:support control of MP3 play through serial ports,
    support MP3 play control by Bluetooth.
    MP3 song choice: support choosing songs by Bluetooth or serial ports.

    No.2: Bluetooth music input module
    Bluetooth play:support Bluetooth play.
    Bluetooth control:support Bluetooth control all operations of transmitter.
    Bluetooth distance: <= 10 meters.
    Bluetooth play: supports control Bluetooth play/pause/previous/next from device.

    No.3: Rechargeable battery module
    Use Battery: support external battery, 3pcs of 18650 li-on battery.
    Battery recharge: adopt specialized battery chip, which can charge, product and
     automatically stop charging when battery is full.
    Battery protection: When the voltage of battery goes down to the lowest level, the battery will stop output automatically to protect itself from damage.
    Battery life: Continuously work about 4 hours at 1300MA in maximum power output

    Total:188 USD

    Item:145 USD   Shipping:43 USD



    How far(long) the transmitter cover?

    The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

    EXAMPLE 5W FM Transmitter use in the city and hometown:

    I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

    I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

    I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

    Below are the approximate range of different power FM Transmitters. ( The range is diameter )

    0.1W ~ 5W FM Transmitter :100M ~1KM

    5W ~15W FM Ttransmitter : 1KM ~ 3KM

    15W ~ 80W FM Transmitter : 3KM ~10KM

    80W ~500W FM Transmitter : 10KM ~30KM

    500W ~1000W FM Transmitter : 30KM ~ 50KM

    1KW ~ 2KW FM Transmitter : 50KM ~100KM

    2KW ~5KW FM Transmitter : 100KM ~150KM

    5KW ~10KW FM Transmitter : 150KM ~200KM
