800mW FSN-302P V2.0 mini portable pocket fm radio transmitter mp3 with rechargeable Lithium-ion battery cover 300-800M

Total:85 USD

Item:70 USD   Shipping:15 USD


If you have any question ,Please feel free to tell me :sky@cantonmade.com

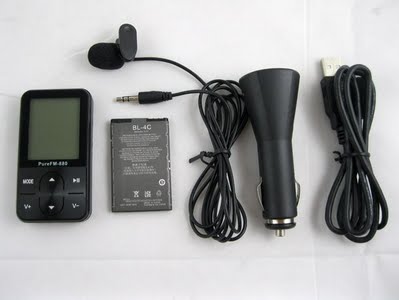

Package Includes:

1x FSN-302P V2.0 FM Transmitter
1x Lithium-ion rechargeable battery
1x Lavalier Microphone
1x Car charger
1x USB data cable
1x Audio cable
1x Manual

<-------------------------- PHOTO-------------------------->

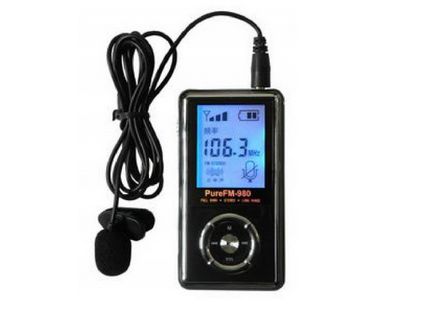

800 mW FSN-302 V2.0 mini portable pocket fm radio transmitter mp3
with rechargeable Lithium-ion battery for coverage 800 meters

 Adjustable power 3 level  and voice 8 level

Small size and Interchangeable Lithium-Ion battery

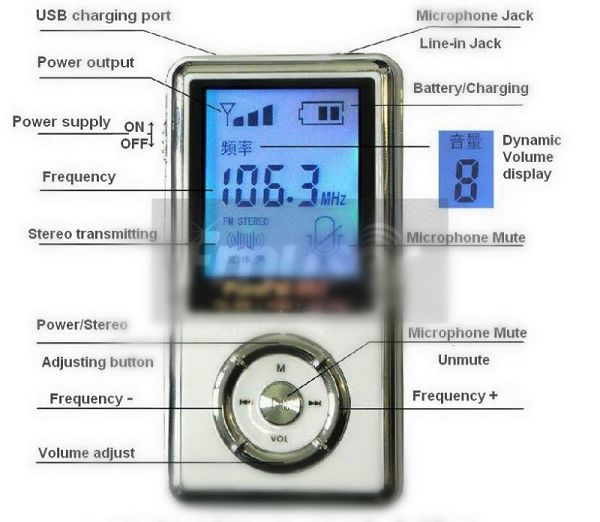

          o  Easily choose your frequency LCD and buttons
          o Works with standard FM receivers
          o Good noise reduction effect
          o Adjustable power 3 level  and voice 8 level
          o Stereo 1/4-F audio input connector,USB interface cable
          o Small size and Interchangeable Lithium-Ion battery
Technical Specifications
          + Weight: about 26 grams (without batteries) About 43 grams (with battery)
          + Frequency: 76 ~ 108MHz
          + Step frequency: 100KHz/1MHz (standard / fast)
          + Power Supply: BL-4C Li-ion battery, 3.8V
          + Transmit power: (1 / 2 / 3 power)
          + FSN-302P:150 mW / 500 mW / 800 mW
          + (Another product:FSN-302: 15 mW / 50 mW / 150 mW )
          +  Working hours: (1 / 2 / 3 power)
          + FSN-302P: 6 hours / 4 hours / 2 hours
          + (Another product:FSN-302: 13 hours / 8 hours / 6 hours   )
          + Standard BL-4C 860MAH capacity
          + The ideal distance: (1 / 2 / 3 power)
          + FSN-302: 100 m / 200 m / 300 m (about)
          + (Another product:FSN-302P: 300 m / 600 m / 1000 m (about))
          + The microphone volume: 8-15dB ~ +12 dB
          + Noise reduction: about 20dB
          + Frequency stability: 15PPM, PLL frequency synthesizer
          + Audio Response: 30Hz ~ 15KHz, mono   Pre-emphasis 75uS
          + Charge time: about 8 hours, charging voltage 5V
          + Charging port: MINI-USB-4PIN
          + Display: LCD liquid crystal display
          + LCD backlight: blue LED backlighting
          + Data retention: frequency / volume / power / noise / Mute and other users within the parameters
             EEDATA storage, not due to the battery power is exhausted or the battery is taken Out to lose.
Total:85 USD

Item:70 USD   Shipping:15 USD

If you have PayPal or Credit Card , You can click the yellow PayPal button to pay with your PayPal or Credit Card
If you don't have PayPal or Credit Cad, You can pay to us with Western Union , Money Gram or Bank Transfer
How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter :100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
