Before I talk about "Push Streaming", let me introduce you a basic theoretical term-Push Streaming Protocol. The "Push Streaming Protocol" widely used in live broadcasts is generally RTMP (Real Time Messaging Protocol). The protocol is a TCP-based protocol family, a network protocol designed for real-time data communication, mainly used for audio, video and data communication between the Flash/AIR platform and the streaming media/interactive server supporting the RTMP protocol . Software that supports this agreement includes Adobe Media Server/Ultrant Media Server/red5, etc.
"Push streaming" is actually the process of transmitting live video signals to the network. "Push streaming" has relatively high requirements on the network. If the network is unstable, the live broadcast effect will be very poor, and the viewer will experience freezing and other phenomena when watching the live broadcast.
In the high-precision salon live broadcast, traditional equipment was initially used for "push streaming".
The specific process is: connect the switcher, network encoder, and notebook in the EFP system through a network cable in order. After the connection is completed, make sure that the IP address of the notebook computer and the address of the network encoder are in the same network segment, and then encode on the computer page To adjust the various "push streaming parameters" of the device, in order to ensure the normal "push streaming", it is also necessary to set the network push address, enter the push stream address, live broadcast address, video mode, resolution, bit rate, playback domain name, and playback address And other content. After setting, confirm the IP address, and then perform network speed measurement, and make sure that the network and the network encoder are connected normally. This kind of "push streaming" requires too much equipment, and it is very troublesome when problems occur. It is necessary to check the equipment one by one, which is extremely time-consuming.
Later, the live broadcast system was changed to the Livestudio system, and the "push streaming" was built into the software of Livestudio. The entire "push streaming" process no longer requires additional network encoders, notebooks and other equipment, and there is no need to set up IP, as long as the network is normal , The operation can be completed by networking, and the quality of "Push Streaming" can be set to meet the requirements according to the actual situation of the network. This kind of operation is very convenient and effectively avoids the above-mentioned problems.

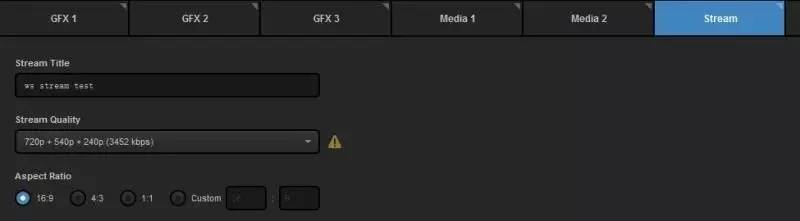

↑ Push streaming interface
In addition, Livestudio can also bind the network as needed, and set the main connection and backup connection. The bound network allows you to choose to use other networks and distribute streams evenly on all networks. Even if the main connection fails, the backup connection will continue to "push the stream" to ensure the normal progress of the live broadcast.

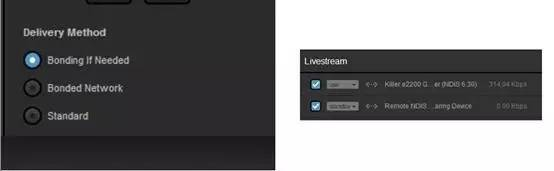

↑ Backup connection
After entering the live broadcast, Livestudio will display the current network status at the top and the status of "Push Streaming" at the bottom: time, frame rate, bit rate, number of viewers watching the live broadcast, etc.
↑ Push stream status prompt information
Such "push streaming" can monitor live broadcast more intuitively and effectively, adding another layer of security protection mechanism to live broadcast.
|
|
|
|
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter ：100M ~1KM
5W ~15W FM Ttransmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~10KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
