Quality FM transmitter

The VHF frequency is decided by coil L1 and variable capacitor VC1. Reduce the value of VR2 to have a greater power output.

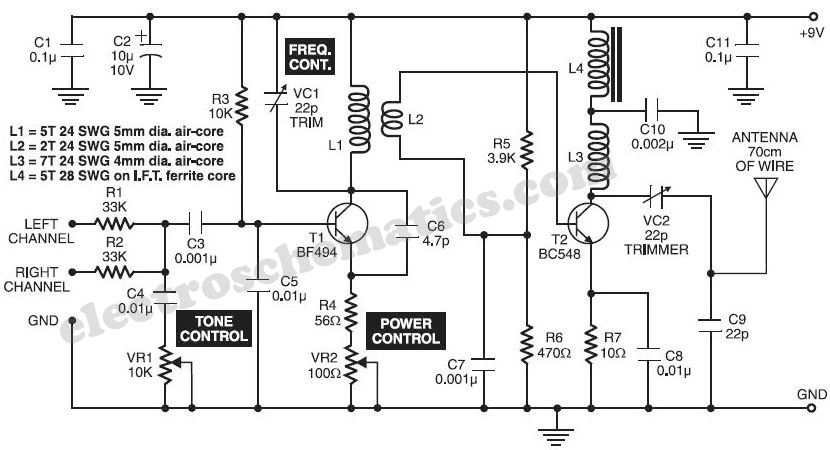

The next stage is built around transistor BC548 (T2), which serves as a Class-A power amplifier. This stage is inductively coupled to the audio-frequency modulation stage. The antenna matching network consists of variable capacitor VC2 and capacitor C9. Adjust VC2 for the maximum transmission of power or signal strength at the receiver. Audio FM transmitter circuit diagram

If you design a good pcb layout you can use it as a car fm transmitter.
For frequency stability, use a regulated DC power supply and house the transmitter inside a metallic cabinet. For higher antenna gain, use a telescopic antenna in place of the simple wire. Coils L1 and L2 are to be wound over the same air core such that windings for coil L2 start from the end point for coil L1. Coil winding
details are given below:
L1: 5 turns of 24 SWG wire closely wound over a 5mm dia. air core
L2: 2 turns of 24 SWG wire closely wound over the 5mm dia. air core
L3: 7 turns of 24 SWG wire closely wound over a 4mm dia. air core
L4: 5 turns of 28 SWG wire on an intermediate-frequency transmitter (IFT) ferrite core
Check the related posts for some stereo fm transmitter circuits.
