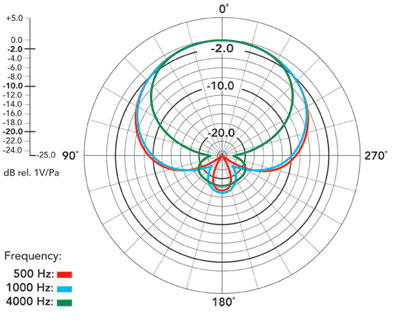

Rode NTG-3 shotgun microphone directivity

Rode NTG-3 shotgun microphone directivity

NTG3 is one of the most commendable microphone RODE company , the microphone is a result of years of research and development engineers , and a professional broadcast microphone , to meet the needs of film and television recording , but the performance is a great inexpensive cost ultra- good microphone .

A very good features NTG-3 is the performance in adverse environments. Bias by using RF technology , NTG-3 almost completely Dikangdezhu moisture condensation problems in the environment prone , NTG-3 appears to be the only option that you can effectively solve this problem.

When the microphone run out, you can load it to the factory standard aluminum shock microphone box , this box can do for your mic NTG-3 provides storage or transport protection.

Product Features :

♦ specifically for use in harsh environments for design

♦ background noise than most shotgun microphone low 50%

♦ Ultra-low handling noise

♦ broadcast radio signal interference effectively shield

♦ true condenser microphone ( external RF bias )

♦ High sensitivity

♦ excellent broadcast quality

♦ Australian designed and manufactured

Performance indicators:

Acoustic principle: linear gradient
Frequency response: 40Hz ~ 20KHz linear
Nominal impedance : 25Ω
Maximum output : +8.2 dB (1% THD, load 1kΩ)
Maximum SPL : 130dB (1kHz, 1% THD, load 1kΩ)
Power supply : 48V phantom power
Output connection : 3 -pin XLR connector ( pin 1 , pin 2 , and 3-pin balanced output )
Point: the super-cardioid
Sensitivity :-30dB ± 2dB re 1V/Pa @ 1kHz
Geometric noise : 13dBA SPL (A -weighted - according to IEC651)
Dynamic range : 117dB ( according to IEC651)
SNR : 81dB SPL (A -weighted - according to IEC651)
Dimensions: Length : 255mm; Diameter : 19mm
Weight : 163g

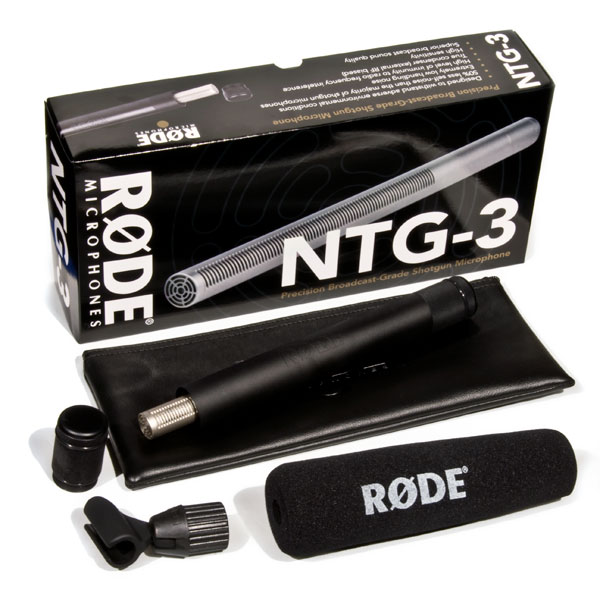

List of Annexes :

► waterproof aluminum tubular microphone box (RCNTG3)
► windscreen (WSNTG3)
► microphone package (ZP2)
► microphone clip (RM5)
