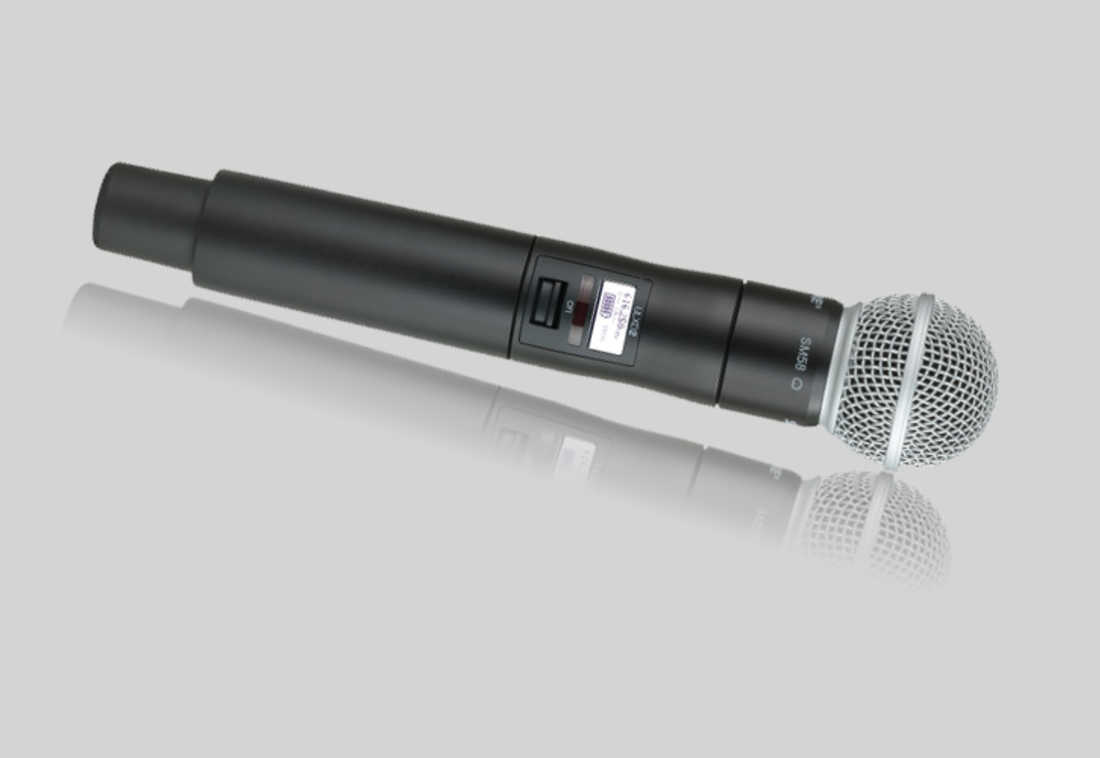

SM58 microphone handheld wireless transmitter with ULXD2

SM58 microphone handheld wireless transmitter with ULXD2

Shure ULXD2 for handheld wireless transmitter , compatible with the ULX-D ™ wireless digital systems. ULXD2 of lightweight aluminum material , durable, with integrated antenna , providing transparent audio quality and reliable RF performance . Intuitive controls and menu display and high-contrast LCD screen can be adjusted quickly and easily , and infrared synchronization settings changes quickly send to the receiver. Two AA alkaline batteries can provide up to 11 hours of work time, and advanced lithium -ion rechargeable battery to extend battery operating time and to improve its measurement accuracy. In security applications, transmission needs , ULX-D provides the Advanced Encryption Standard (AES) 256 -bit encryption signal to obtain a non- destructive privacy. ULXD2 choose a variety of compatible Shure microphones , including SM58 ®, in order to provide the required quality and performance of professional sound reinforcement .

Function

    Frequency response 30Hz-20kHz , with a flat frequency response characteristics ( depending on microphone head may be)
    Shure pickup can be replaced , including the legendary SM58 ®
    AES256 bit encryption technology can be used for security applications require transmission
    Shure 's patented technology to optimize the gain correction , including all input sources , including the dynamic range of the system , eliminating the need to adjust the transmitter gain
    Greater than 120dB Dynamic Range
    There are 1,10 and transmit power 20 mW optional ( related to the region )
    5 segment battery level display ( for non- Shure brand batteries )
    Shure lithium-ion rechargeable battery pack provides over 12 hours of battery life, but in hours and minutes for accurate measurement, with zero memory effect.
    The transmitter can be external rechargeable ( use SBC200 double unit charger )
    2 AA batteries can be used continuously for 11 hours
    Backlit LCD screen , easy to navigate menus and control
    100 meters ( 300 feet ) operating range
    Rugged metal construction
    Frequency and Power Lock

    Transmitter Type: Handheld
    Dimensions : 256 mm x 51 mm (10.1 in x 2.0 in..) L x Dia.
    RF output power : 1 mW, 10 mW, 20 mW
    RF output power : 1 mW, 10 mW, 20 mW mw
    Battery operating time: Shure SB900 rechargeable lithium -ion battery: > 12 hours or 2 × AA alkaline batteries
    Weight : 340 g, excluding battery weight g
    More specifications :
    Gain adjustment range 0 to 21 dB (in 3 dB steps)
    Battery Type Shure SB900 rechargeable lithium-ion battery or AA alkaline batteries
    Battery Run Time @ 10 mW Shure SB900 rechargeable lithium -ion battery: > 12 hours
    Dimensions 256 mm x 51 mm
    Weight 340 grams without batteries
    Machined aluminum housing

    Audio Output
    Set imbalance
    Maximum output power
    1 kHz at 1% THD 145 dB SPL (SM58), typical
    Note: Depending on the type of microphone head
    Preamplifier output signal (EIN)
    System gain setting ≥ +20 120dB, A -weighted ( typical value )

    RF output
    Integrated single -band antenna type helical antenna
    Occupied bandwidth <200 kHz
    Shure's patented digital technology modulation type
    Energy 1 mW, 10 mW, 20 mW

Optional accessories handheld wireless transmitter

SB900	SBC200	SBC800

Rechargeable battery for P10R and P9RA receivers as well as ULXD2 and ULXD1 transmitters. Can be charged with SBC800 8-Up Charger.	The compact design of the portable charging unit can be placed inside the transmitter to charge the battery or charging separately after removal, and four SBC200 will link up with the same power adapter while charging.	8-Up battery charger charges eight SB900 batteries to full capacity within three hours, with status LEDs to indicate power levels.
