Two independent stereo audio surveillance to monitor Channel:
4 analog or digital stereo channels lRM-2S4 of
10 analog lRM-2S10 and 10 digital stereo channels

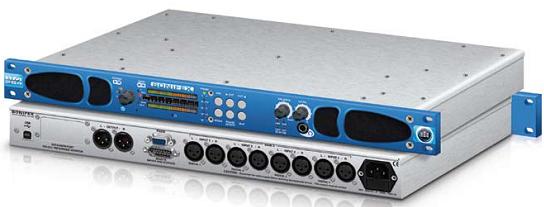

RM-2S4 and RM-2S10 are both 1U rackmount equipment, providing high-quality loudspeaker monitoring, but also provides accurate high-resolution measurements, accurate to 4 (RM-2S4) or 20 (RM-2S10 analog and digital ) stereo audio sources and more selectively additional extension cards. The source can be any form of a mixed analog and AES / EBU digital form, the sample size may be high to 192 kHz are able to accept.
On the RM-2S4 can be both an analog audio input or digital, because they are automated through the left AES / EBU Neutrik ™ XLRs conversion, or analog input Neutrik ™ XLRs. They may be in any form of combination. RM-2S10 10 group independent analog and digital inputs.
The analog input can be any combination of balanced or unbalanced. Digital inputs are switchable AES / EBU connector is (close range) bridging operation and additional spreadsheet format digital input gain to choose from, can be a low-level analog and digital sources.
Sources (and additional rows of information sources) rotary encoder selected via the front panel, each with a clear LED lights indicate the current selection. Using RM-2S10, LED sources also act as signal present indicators. One pair of line-level audio output, configured as analog or digital AES / EBU, in accordance with the selected source, may be at a fixed level, or monitor speaker volume.
The selected source level is displayed s on a pair of bright, multi-color 53 segment bar graph test, there are seven models to accurately size / To accommodate different tasks and the preferred response. Provide clear labeling to choose the size of your display brightness meter instrument can also be adjusted from the front panel. Conditional correlation or phase error of a separate phase of the measurement instrument next channel. In the back, open collector output gate alarm output provides a continuous lower level, over the level, phase errors and digital source lock hardware specifications. Six lighted button provides a full range of audio 'modifiers' - instant transfer under the sound volume, individual muting of each audio channel, stereo Tuomo Nuo conversion, phase inversion and Chinese conversion stage. The back, the logic level input to allow to dim (DIM) access and muting (MUTE) function directly from the remote.
Three-way speaker system is to provide data run through a DSP-based crossover and a trio of highly efficient Class D amplifier. Careful attention to driver selection, materials and case design, DSP equalization plus runs to ensure a response and outstanding reproduction equatorial. Protection limiter to prevent speaker damage in overload conditions. When the plug is inserted, the front-panel headphone jack will automatically make the internal speaker sound. Balance control allows you to change the left and right channels of stereo imaging.
A five - band parametric equalizer can be used as an indoor balancing purposes, by sonifex SCi Windows-based remote control software. Source selection, status monitoring and unit number of functions, plus firmware updates, or together with sonifex SCi software can add extra functionality through other more distal USB and RS232. Open control protocol also allows the terminal program or custom applications to operate.
RM-2S4 and RM-2S10 other additional features also include HD video input expansion cards, which allow multiple AES embedding an HD SDI or SD - SDI signals are in addition to the embedded and monitoring, either with (RM-HD1E) or outside (RM-HD1) Dolby ® E-class or Dolby ® Digital encoding addition.
RM-2S4 and RM-2S10 without adjustment of the situation in the whole of the mains voltage (AC 85--264 volts, 47--63 Hz) operations.
