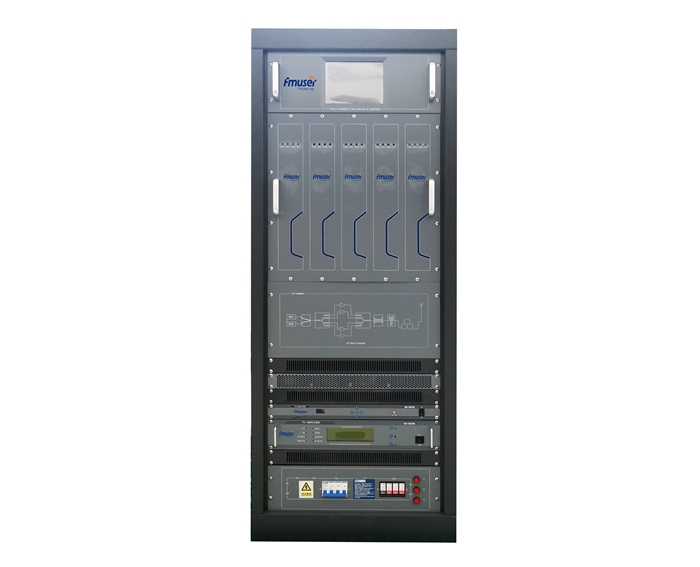

FMUSER FU-518A 5000W 5KW Analog UHF VHF TV Transmitter Hot-Plug
For Television Station Channel
Overview:
This Transmitter is a high-standard, broadcast-grade cabinet-type all-solid-state analog TV transmitter. It adopts a hot-plugin structure and can be repaired and maintained without downtime. It uses a TV exciter of brand-new software radio technology; it adopts international high-quality LDMOS high-power field effect transistor to achieve radio frequency amplification, and the output power can be 5000W.
The TV transmitter is mainly composed of a TV modulation unit and an RF power amplification unit. Among them, the TV modulation unit uses the new FPGA + DDS to realize the software TV modulation function, while obtaining superior technical indicators while ensuring reliability and performance consistency; the RF power amplification unit uses international high-quality LDMOS high-power field effect transistors, Analog/Digital Compatible, stable and reliable.
The whole Transmitter adopts 19 "standard stainless steel case, suitable for all levels of TV stations.
Features:
● Analog TV exciter with new digital technology, superior performance, high reliability and good consistency.
● The main and backup exciter configurations can be used to reduce the stop rate (spare exciter and automatic switch are optional).
● With no video, over standing wave ratio, over power, over voltage, over current, over temperature and other protection functions to reduce equipment damage.
● Power control adopts closed-loop automatic gain control to ensure stable output power without drift.
● The power amplifier unit consists of four independent 1500W power amplifiers.
● The 1500W power amplifier is installed in a hot-plugin box, which is composed of four identical 400W power amplifier modules for low loss, high isolation and in-phase synthesis. The power redundancy design has a large margin and high reliability.
● The power amplifier module uses the latest high efficiency and high standing wave ratio LDMOS tube, adopts micro strip impedance conversion technology, simple and efficient, good consistency, easy maintenance and replacement.
● Using high-quality switching power supply, with over-voltage, over-current, under-voltage, over-temperature, short circuit, lightning protection and other protection measures, high efficiency, good voltage regulation range, strong ability to adapt to external power changes; and flexible N + 1 heat Plug-in configuration scheme, parallel current sharing centralized power supply. It can also be redundantly configured according to customer requirements.
● With intelligent network management and monitoring, with RS232 and TCP / IP communication interface.
● The whole transmitter adopts one three-phase high-quality long-life large-volume centrifugal fan, which has large redundant air volume and good heat dissipation effect, so that the transmitter is in a low temperature state, which can extend the transmitter life.

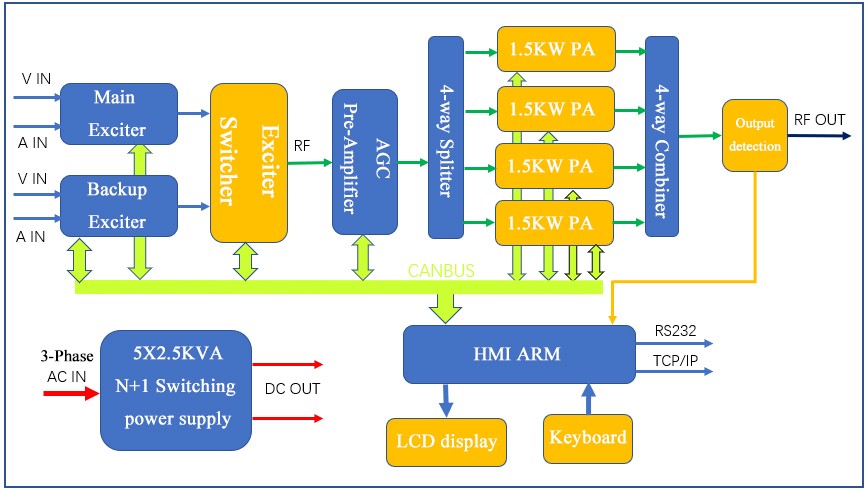

FU-518A-5000W/H1 Analog TV Transmitter Diagram
Technical Specifications:
Overall performances:
1. Operating frequency band: VHF / UHF
2. Image carrier frequency deviation: ± 300Hz
3. Output power: 5000W
4. Output impedance: 50Ω
5. Inter-modulation distortion: ≤-50dB
6. Useless emission: ≤-50dB inside adjacent channels;
≤-65dB outside adjacent channels
7. RF output interface: 1-5/8” Flange
8. Power supply: three phase 380VAC
9. Cooling method: forced air cooling
10. Working environment temperature: -10~+45℃
11. Dimensions: 570mm(width) x 1480mm(height) x 1050mm(depth)
12. Weight: 300Kg
Image performance:
1. Video input level: 1VP-P positive polarity
2. Video input impedance: 75Ω
3. Video in-band reflection loss: ≥35dB
4. Video input interface: BNC-K
5. Periodic clutter signal-to-noise ratio: ≥55dB
6. Continuous random wave SNR: ≥60dB (weighted),
≥55dB (un weighted)
7. Group delay: ±30ns
8. 2T square wave distortion: ≤1%
9. Distortion of brightness waveform: ≤1.2%
10. Non-linear brightness distortion: ≤3%
11. Differential gain DG: ≤±3%
12. Differential phase DP: ≤±3°
13. Color / bright gain difference: ≤1%
14. Color / bright delay difference: ±5ns
15. Modulation degree: ≤87.5%
Sound performance:
1. Sound / image carrier power ratio: -10dB
2. Sound carrier frequency deviation: ±200Hz
3. Audio input level: 0dBm ± 6dBm
4. Audio input impedance: 600Ω balanced or 10KΩ unbalanced
5. Audio input interface: XLR-K / BNC-K
6. Sound modulation capability: >±100KHz
7. FM signal-to-noise ratio: ≥70dB
8. Amplitude-frequency characteristic: ± 1dB
9. AM noise (no modulation): ≤-55dB
10. Internal carrier noise (100% modulation): ≤-50dB
11. Harmonic distortion: ≤0.3%
12. Maximum frequency deviation: ±50KHz
13. Pre-emphasis time constant: 50us
