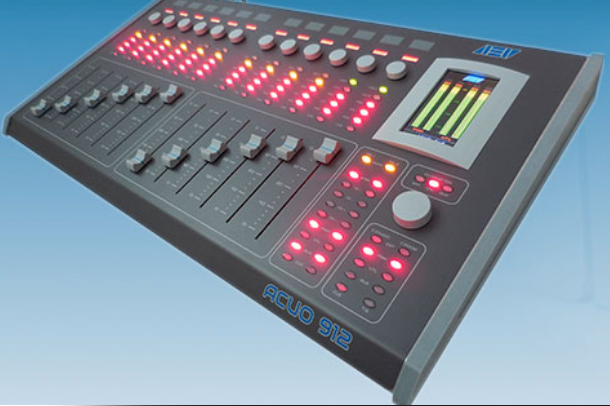

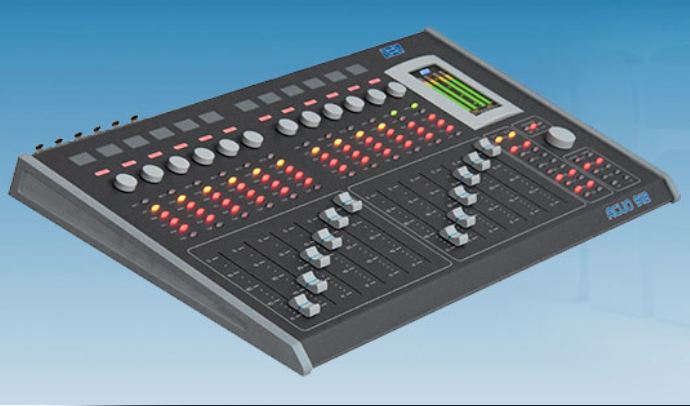

AEV ACUO 912 Digital Broadcast On Air Console for Living Room

A modern, compact design, in line with the latest trends in design, together with a careful and ergonomic study make it the new benchmark in the industry with an incomparable versatility, it can be used easily even in the case of outdoor operation

ACUO912 with twelve double switchable channels, designed specifically for broadcast applications.and it’s provided with AEV’s internal telephone hybrids or connected to any other external: this makes it a perfect and complete console for Radio Stations.

General overview:
– All Balanced inputs and outputs
– Twelve double channel inputs Mixer
– A/B input control
– 100 mm ALPS Sliders with Digital VCA control
– Six balanced mono Microphone input with phantom power with XLR connectors
– Twelve balanced stereo lines with RJ-45 connectors
– Four Digital AES/EBU input
– Digital Three band tone control all input channels
– TwoTelephone opto-coupled hybrid internally integrated

-Two Telco IN/OUT
– Meeting function on telephone hybrid (PGM, UTL, AUX and CUE)
– CUE Bus
– Three independent Balanced Analog Stereo Outputs (PGM, UTL and AUX)
– Two independent Digital AES/EBU Outputs (PGM and UTL )
– Control Room and Studio functions with monitor mode selector
– Control Room out with mute logic
– Internal USB Audio Board for extra versatility connection
– Output opto-coupled ON AIR command
– Totally shielded bus
– Digital TFT display 4,3” for monitoring & setup functions , Digital stereo led meters: PGM& CUE
– Tabletop mount or rackmountable 19”

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter ：100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
