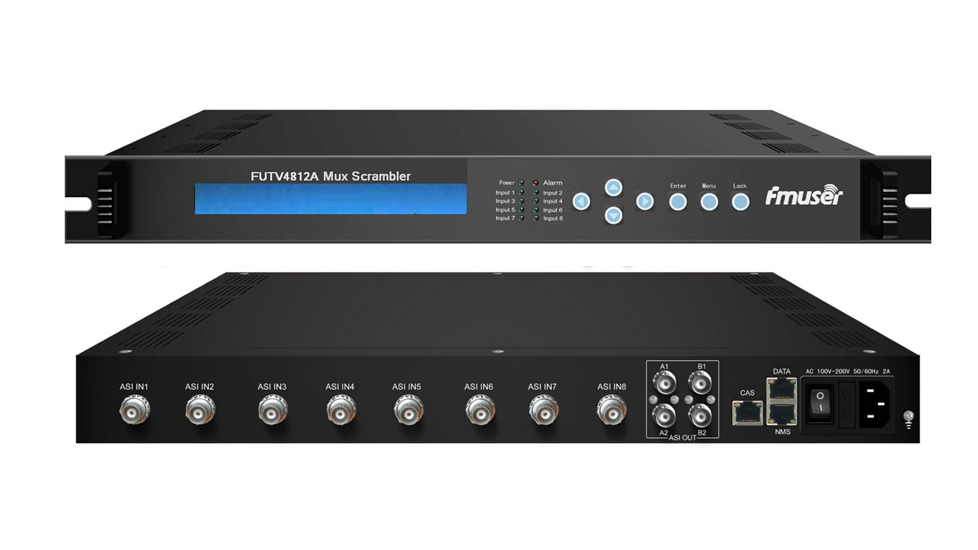

FMUSER FUTV4812A IRD(8 ASI Input,2ASI 1 IP Ouput)Mux-Scrambler

Total:1299 USD
Item:1299 USD Shipping:0 USD

FUTV4812A IRD(8 ASI Input,2ASI 1 IP Ouput)Mux-Scrambler

Input:ASI
Output:IP-MPTS, IP-SPTS, ASI

Outline

FUTV4812A ASI input multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.

Features

* Fully comply with ISO13818 and EN300468 standard

* Integrated multiplexing and scrambling functions

* 8ASI input
* Support 2 channels TS re-multiplexing
* SPTS and MPTS code stream multiplexing
* Supports accurate PCR adjusting
* Support PID filtering, re-mapping
* Two groups( each group has 2 channels) separate TS output
* TS over UDP output as mirrors of ASI outputs(RJ45)
* Supports PSI/SI rebuilding, editing
* Supports DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
* Support 4 different simulcrypt CAS
* Supports CAS remote connection scrambling
* Supports huge buffer memory and resists unexpected code stream
* Supports multiplexing the same program to all the output channels
* Alarming function
* Supports network remote upgrading

* LCD/keyboard and net management, support NMS/SNMP

Specifications

Input interface	ASI	8ASI	FUTV4812A
Re-multiplex		2 channels TS re-multiplex
		PID re-mapping ( auto/manual optional)
		PCR accurate adjusting
		Automatically generating PSI/SI table
Input	Packet format	204/188 self-adaption
Scrambling	Simul-crypt CA	4
	Standard	ETR289, ETSI 101 197, ETSI 103 197
	Connection	Local/Remote connect
Output port	ASI	2 groups separate outputs (each group has 2 channels)
	IP	TS over UDP output as mirror of ASI output (RJ45)
PID	Output range	0x0000—0x1FFF
	Amount of output PID per input	64
NMS port	Ethernet port	10/100M
Miscellaneous	Demission(LxWxH)	482mm410mm44mm
	Weight	4kg
	Temperature	0~45C(operation),-20~80C(storage)
	Power supply	AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
	Consumption	≈18W

Package List

FUTV4812A multiplexer scrambler	1pcs
User’s manual	1pcs
ASI Cable	1pcs
Power Cord	1pcs

Total:1299 USD
Item:1299 USD Shipping:0 USD

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter ：100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
