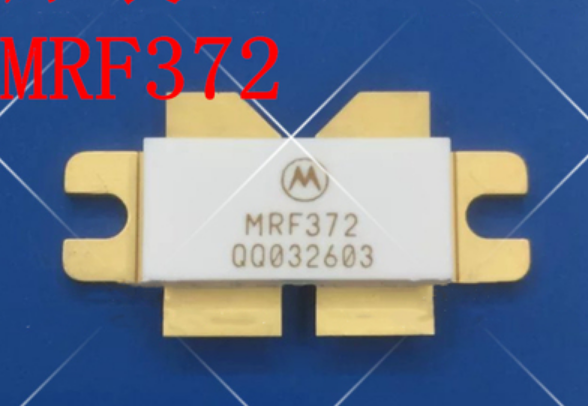

Motorola MRF372 Power MOSFET RF Transistor N-channel

Designed for broadband commercial and industrial applications with frequencies from 470 to 860 MHz.

The high gain and broadband performance of this device make it ideal for large–signal, common source amplifier applications in 32 volt transmitter equipment. • Typical Narrowband Two–Tone Performance @ f1 = 857 MHz, f2 = 863 MHz, 32 Volts Output Power

— 180 Watts PEP Power Gain — 17 dB Efficiency — 36% IMD — –35 dBc • Typical Broadband Two–Tone Performance @ f1 = 857 MHz, f2 = 863 MHz, 32 Volts Output Power — 180 Watts PEP Power Gain — 14.5 dB Efficiency — 37% IMD — –31 dBc • Internally Matched, Controlled Q, for Ease of Use • Integrated ESD Protection • 100% Tested for Load Mismatch Stress at All Phase Angles with 3:1 VSWR @ 32 Vdc, f1 = 857 MHz, f2 = 863 MHz, 180 Watts PEP • Excellent Thermal Stability • Characterized with Series Equivalent Large–Signal Impedance Parameters

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter ：100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM

How to contact us for the transmitter?

Call me +8618078869184 OR
Email me [email protected]
1.How far you want to cover in diameter ?
2.How tall of you tower ?
3.Where are you from ?
And we will give you more professional advice.
