FMUSER 50W FM Transmitter with RDS Encoder for Intelligent Addressable Broadcasting with DP100 Dipole Antenna and Cable Complete KIT
' 50W CZH-T501 FU-50C PLL Professional RDS FM Broadcast Radio Transmitter 1U
87-108Mhz 0W -50W continue adjustable + 1/2 wave dipole antenna KIT
CZH-T501 50w FM transmitter is a professional FM transmitter newly released by FMUSER. It’s featured by one button control for all functions. It has VSWR protection, temperature protection, RDS port, electronic volume adjusting,equipped with low pass filters. It’s applicable in many places, such as stadium, county radio station, community radio station, motel, public square,church, theater and so on.
Functions and features:
>1 U-standard chassis
>Power up to 50 watts
>Using digital phase-locked loop frequency synthesizer (PLL) technology, ultra-high frequency stability.
>Have the standing wave protection, and overtemperature protection.
>Output power from 0.5W ~ 50W continuously adjustable
>Using the power lock feature
>Show the timely output power and various working status.
Electrical parameters:
RF part:
Operating frequency: 87 ~ 108MHz
Output power: 50W MAX continuously adjustable
Output Impedance: 50 ohm
Spurious and harmonic radiation:-60db
Audio part:
Frequency response: 50 ~ 15KHz (3db)
Distortion: 0.2%
Left and right channel separation: 45db
LINE IN connector: RCA two-channel Cinch
The microphone interface: 6.5mm
Microphone Type: Dynamic microphone (electret microphone is not applicable)
Power supply part:
Rated working voltage: 200 ~ 240V AC / 50/60Hz (you can switch into 100 ~ 120V AC inside the chassis)
Maximum power consumption: 100W
Internal working voltage: DC28V, DC12V, DC5V
Operation Attentions:
1. Make sure the antenna or the Load can be ground connected to transmitter
2. The power supply voltage must be within the allowed range.
3.Make sure the fan ventilation is good.
Package Include:
1*CZH-T501 50W FM transmitter (Including power supply )
1 * 8 meters RG58 cable
1* 1/2 wave dipole antenna
1* Aduio Cable
If you have any question ,Please feel free to tell me :[email protected]
<-------------------------- PHOTO-------------------------->
FMUSER RDS-A RDS Encoder for
FM Transmitter with MPX SCA Input
Overview
FMUSER RDS-A Encoder is well suited for most regional, local, RSL, LPFM and other medium- and small-coverage radio stations which use Ethernet for dynamic RDS data distribution. Built-in Ethernet controller supports multiple TCP/UDP ports, internet functions and remote monitoring .
FMUSER RDS-A Encoder have Fully DSP concept and effective design ensures high reliability, excellent signal characteristics and gives the user many advanced features while maintaining low acquisition costs.
Features
l Fully dynamic FM broadcast RDS encoder with up to four independent communication ports
l USB connectivity for local settings and maintenance purposes
l Ethernet connectivity for linking with broadcast automation system
l Control interface based on ASCII commands and UECP protocol
l Supports internet functions and remote monitoring
l Text features include dynamic PS, parsing, scrolling, tagging, fixed messages, scheduling and HTTP reading
l Excellent compatibility with broadcast automation systems
l Control software includes powerful Windows GUI application
l Supports control from external PHP/ASP scripts
l Easy and fast set-up
l Excellent spectral purity, direct digital RDS signal synthesis; compliant with EN 50067 / EN 62106
l Two switchable program sets (with optional DSN and PSN setting)
l External TA and Program set switch
l Bypass relay, high reliability
l Switchable MPX loopthrough mode (Loop/Side)
l Internal real-time clock incl. backup battery
l No special 19 kHz input needed - pilot tone internally recovered from MPX signal using digital PLL
Frequency Question (FAQ)
1. What is Radio broadcast data system（RDS）
Radio Data System (RDS) is a standard for helping people insert some data information in a FM radio broadcasts station.
RDS transmitted including time, station identification and program information.
The standard began as a project of the European Broadcasting Union (EBU).
2. Why you need to build fm radio station with rds?
RDS provides a digital channel for ordinary FM radio stations, allowing the radio to provide users with more features, including the following illustrations:
The most important features is AF, TA, TP, it help FM radio station do more…
a) RDS Traffic Announcement (TA) :
The severing of the increased busy traffic, it is now interested in various countries in Africa to insert RDS signals when constructing a transmitting station, so as to realize the most economical broadcast of some traffic information by means of coverage of FM signals.
b) Traffic Program (TP):
With the TA and TP functions of RDS, RDS helps radio in-vehicle users to obtain traffic information faster, reduce congestion in the city, and increase the listening rate of the radio station.
c) Alternative Frequency(AF):
RDS AF help drivers automatic frequency switching between the Relay stations.
Inserting the RDS signal in the transmitter can also automatically switch between multiple different frequency broadcasts in the same program. The receiver automatically switches the substitute frequency AF by detecting the PI code in the RDS signal to ensure that multiple relay stations are passed. Broadcast stations that achieve nationwide coverage achieve seamless coverage and seamless listening. When the car passes the signal superposition zone between the two frequencies, the AF function of the RDS will automatically switch to the same program at different frequencies.
4. What is needed to build an RDS broadcast?
A: A RDS Fm radio transmitter equipment kit list:
1) FMUSER RDS-A encoder
2) FMUSER FSN-1000W Fm transmitter with 57khz
3) RDS encoding software
4) Cable and antenna
5. How can I build my rds channel on my Existing transmitter system?
1) Confirm whether the current transmitter already has a 57khz input interface.
2) Purchase FMUSER's RDS-A encoder to insert your digital signal into your radio broadcast.
3) Run the Rds software on your computer and insert your radio station logo, traffic information…
4) Use a RDS radio to check the digital information you provide.
6. Do I need to pay for your RDS software at an additional cost?
No, You just need to purchase FMUSER RDS-A encoder and FSN series transmitter, we provide RDS software for free.
8. What are the characteristics of the FMUSER RDS-A encoder, and what is the difference compared to innovonics RDS encoder?
Innovonics RDS encoder is a good products , The biggest difference should be the same function, and we offer more economical encoders.
Let’s look the the characteristics:
Technical Specifications
|
Parameter
|
Condition
|
Value
|
|
General
|
|
Supply voltage
|
|
12 V DC stabilized
|
|
Supply current
|
|
280 mA
|
|
Signal connectors
|
|
unbalanced BNC
|
|
Data connectors
|
|
1x USB (port 1), 1x Ethernet (port 2, 3, 4)
|
|
Network protocols supported
|
|
HTTP, SNTP, TCP, UDP, DHCP, DNS, SNMP
|
|
USB speed
|
|
software switchable 1200, 2400, 4800, 9600, 19200 bps
|
|
USB Mode
|
|
1 stop bit, 8 data bits, no parity, (no flow control),
ASCII or UECP (SPB 490)
|
|
TA switching
|
|
software or external switch
|
|
TA/EON1TA input
|
|
TTL with 10 kΩ pull-up, level or falling edge activated
|
|
Program sets
|
|
2
|
|
Program set switching
|
|
ASCII command, UECP command or external switch
|
|
Program switch input
|
|
TTL with 10 kΩ pull-up, level controlled
|
|
RDS Services supported
|
PI, PS, PTY, TP, AF, TA, DI, M/S, PIN, RT, RT+
TMC, EON, PTYN, ECC, LIC, TDC, IH, CT, ODA
|
|
RDS signal
|
|
Subcarrier frequency
|
|
57 kHz
|
|
Bandwidth
|
|
± 2.4 kHz (50 dBc)
|
|
Output level adjust
|
|
0.0 to 4.0 V p-p in 256 steps
|
|
Phase shift adjust
|
stereo transmission
|
Full range, in 9.5 deg. steps
|
|
Audio/MPX/Pilot input
|
|
Recommended load impedance
|
mono
|
< 10 kΩ
|
|
stereo MPX
|
< 2 kΩ
|
|
Recommended MPX voltage
|
|
1.3 - 8.0 V p-p
|
|
Passthrough voltage gain
|
2 Hz - 100 kHz
|
1 (0 dB)
|
|
Pilot tone level
|
|
min. 120 mV p-p
|
|
- recommended FM deviation
|
|
6.8 kHz
|
|
Pilot PLL capture range
|
|
8 Hz
|
|
Stereo encoder pilot frequency required
|
stereo transmission
|
19000 Hz ± 2 Hz
|
|
Output
|
|
Output impedance
|
|
100 Ω
|
|
Recommended load impedance
|
|
> 70 Ω, < 1 nF, no DC offset
|
|
Max. output voltage (RDS + MPX)
|
|
9.0 V p-p
|
|
Recommended RDS level
|
|
3 - 11 % of MPX
|
Appearance and Illustration
|
Number
|
Name
|
Explain
|
|
1
|
12V DC
|
Power supply connector. See section 3.3 for details.
|
|
2
|
Ethernet
|
Ethernet RJ-45 connector.
Use a standard (direct) cat 5 Ethernet cable for connection to the Ethernet switch, router or wall-socket.
The Ethernet control includes internal website (referenced as “Port 2”) and two independent user configurable general purpose ports (referenced as “Port 3” and “Port 4”) designated for remote control via TCP or UDP protocol.
The encoder operates also with no cable connected.
|
|
3
|
USB
|
USB standard B type connector. This port is referenced as “Port 1”.
Use the USB for initial setup of the encoder or for its local control.
The encoder operates also with no cable connected.
|
|
4
|
Output BNC
|
RDS signal output to transmitter, modulated at 57 kHz subcarrier.
If the Loop/Side switch is set to the LOOP position, the Output is a sum of the RDS signal and the signal fed to the Input BNC connector.
|
|
5
|
Input BNC
|
Optional input for synchronization to the pilot tone or for mixing the RDS signal with existing modulation signal.
|
|
6
|
Loop/SIDE
|
Allows the input signal to be added to the output signal.
|
|
7
|
GPIO
|
Optional logical inputs for direct control of some RDS services (TA, PROGRAM).
The connector is a standard 6-pin PS/2 type.
|
Packing List
1pc FMUSER 50W 1U FM Transmitter
1pc FMUSER RDS-A Encoder

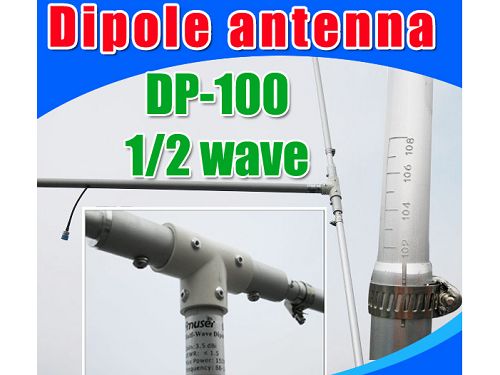

1pc FMUSER DP100 Dipole Antenna
1pc 15meters -5 coaxial cable with connectors
1pc USB Cable
2pc BNC Cable
1pc 12V 2A Power supply

| Total:999 USD | |
| Item:999 USD Shipping:0 USD |
|
|
|
|
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter ：100M ~1KM
5W ~15W FM Ttransmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~10KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
