Buy Digital STL Radio Link Best Studio Transmitter Link for Sale | FMUSER ADSTL
1. Overview
FMUSER ADSTL, also known as radio studio transmitter link, studio transmitter link over IP, or just studio transmitter link, is a perfect solution from FMUSER used for long-distance (up to 60 km about 37 miles) transmission of high fidelity audio and video between a broadcast studio and a radio antenna tower.
This highly integrated digital broadcasting package covers the needed studio to transmitter link equipment required by an expert radio station, including studio link transmitter and STL radio link receiver with complete front panel LCD display control system, ultra-light stainless steel Yagi antenna with high gain, up to 30m RF antenna feedline and complete accessories, which can meet the needs of all types of large and medium scale of radio broadcast stations.
2. Key Products Features
Unlike the microwave stl (Studio to transmitter link), FMUSER ADSTL are more price-competitive especially for low budget buyers (with only thousands of dollars or less budget for the buying). Plus, with its excellent performance, FMUSER ADSTL becomes the first choice for numbers of commercial and private radio stations:
l Saving your buying cost - Up to 4-way stereo high fidelity XLR audio signal and single-way ASI (SDI) Video signal transmission can effectively optimize your budget and avoid additional expenses: whether purchasing multiple sets of studio to transmitter link equipment or renting expensive broadcast antenna towers.
l Discover your broadcast potential - Thanks to our manufacturing factory and expert RF team, the software defined radio (SDR) and digital technology (encoding, modulation, decoding and demodulation) are finally combined and provided as a complete and low cost studio transmitter link system for the public. The advent of FMUSER ADSTL helps to meet various needs of radio broadcast station operators, in terms of commercial type or private type, and has somehow discovered and developed the potential of the radio broadcast stations.
l Meet your needs only - With such an outstanding anti-interference ability, FMUSER ADSTL can easily identify and get rid of studio transmitter link interference. Of course, in exception of one of its best selling points such as anti-interference, others such as stable delivery, cost-friendly, frequency agile and long-distance transmission had made FMUSER ADSTL the best studio transmitter link equipment for sale, which brings alike high performance and a optional buying cost for every buyer in radio broadcast equipment market.
l Make STL frequencies optional - Most importantly, FMUSER ADSTL has optional studio transmitter link frequencies (from hundreds and thousands of MHz to the highest 9GHz). Whether you need unlicensed studio to transmitter link STL or licensed studio to transmitter link, you can put forward your STL frequency requirements and studio transmitter link equipment model requirements to our RF experts. Plus, images, videos and instructions will be provided for free so as to avoid any loss in cost or time that may be caused by illegal perosonal broadcasting or any special restrictions managed by the local radio and television administrations, s.g., FCC in USA.
3. Common Applications
FMUSER ADSTL studio transmitter link equipment is recommended If you are in any of the following situations:
l You need to reduce or avoid the excessively high cost caused by repeatedly buying affordable studio transmitter link equipment and any form of broadcast equipment rental fare (for example, renting a broadcast antenna transmission tower)
l You need an efficient transmission distance up to 60km for HD-SDI audio and video signals or a complete digital studio to transmitter link equipment for sale.
l You need to ensure the lossless quality of audio and video signal during the transmission - lossless are always preferable.
l You are looking for a quality-competitive and affordable radio studio transmitter link for sale but being unaware of the buying price, meanwhile, you need a complete system that can fully meet the needs of network broadcasting for an international broadcasting company, but still looking for the best studio transmitter link equipment supplier.
l You need high fidelity HD-SDI audio and video to be transmitted from afar (broadcast studios) for various broadcast stations (e.g., provincial FM&TV broadcast stations, etc.).
l You have prerequisites that most competitors don't, such as a wide view between the studio and the transmitting tower
l Etc...
4. Strategic Benefits
Here are some of the highlights of FMUSER ADSTL:
l Multiple Optional Studio Transmitter Link Frequencies - in order to avoid any adverse factors to your customers caused by third-party operation (such as the illegal broadcasting studio transmitter link frequencies range established by FCC Part 15 or some local radio and TV administrations), if you need customized services for some special frequency bands, For example, for studio to transmitter link equipment in 7GHz-9GHz frequency band or 100MHz-1000MHz (note that FMUSER provides a variety of optional STL frequency bands and corresponding different STL equipment packages), please contact our RF expert, but always remember to consult the local radio&TV administrations about the legal broadcasting frequency range or allowed STL radio link transmitter, etc. before picking the best radio studio transmitter link for sale
l Complete Solution For Broadcasting - FMUSER ADSTL is highly competitive in terms of cost and performance. While the common studio transmitter links are basically divided into analog and digital radio station studio transmitter link types, and FMUSER ADSTL can be said to be the cheapest studio transmitter link. When you are in lack enough budget for equipment expenditure, this affordable radio studio transmitter link package with a cost of only thousands of dollars can easily meet your needs. Although with such a budget price, its excellent performance is still comparable to hundreds of thousands of dollars of the same level of digital studio transmitter link and analog studio transmitter link:
- As a composite studio to transmitter link, FMUSER ADSTL can simultaneously transmit 4-channel composite XLR stereo audio signals and 1-channel ASI (SDI) video signals, which can effectively save you cost. If you choose FMUSER ADSTL, you don't need to buy studio to transmitter link equipment of multiple sets and can save the rental cost of a radio antenna tower.
- In addition to the capacity of up to 60km audio and video transmission, FMUSER ADSTL also has outstanding anti-interference ability, no accumulation of studio transmitter link interference, and can occupy a wider channel frequency band
- The feature of easy encryption makes FMUSER ADSTL studio transmitter link have higher transmission security and signal confidentiality. You can be 99.99% assured that your carefully produced audio and video broadcasting programs will not be lost or received by mistake (e.g., won't be received by your competitors)
- Thanks to our manufacturing factory and exquisite manufacturing technology, we are now the best studio to transmitter link equipment supplier around the world, all FMUSER studio transmitter link equipment for sale have become smaller in volume and quality, so it is easier to be integrated as a complete broadcast system. What's more, our expert RF team will also help to simplify the basic processes of signal storage, processing, and exchange, so as to obtain the best user experience.
l Unparalleled Sound Experience - 100% sound quality transmission and restoration using professional DSP digital audio technology.
l Fully Reliable - just turn the system on, the studio transmitter link will 24/7 constantly work for your radio station. A routine check is all that's asked for, except for that, it will remain as reliable as always and transmit high-fidelity audio and video constantly for your radio station.
l Lightning Protection System - FMUSER ADSTL studio to transmitter link has its own lightning protection system. You only need to connect the grounding line and leave the rest to the protection system. No matter the lightning enters from the STL radio link antenna, the audio line, or the power system, the STL radio link equipment can be perfectly protected.

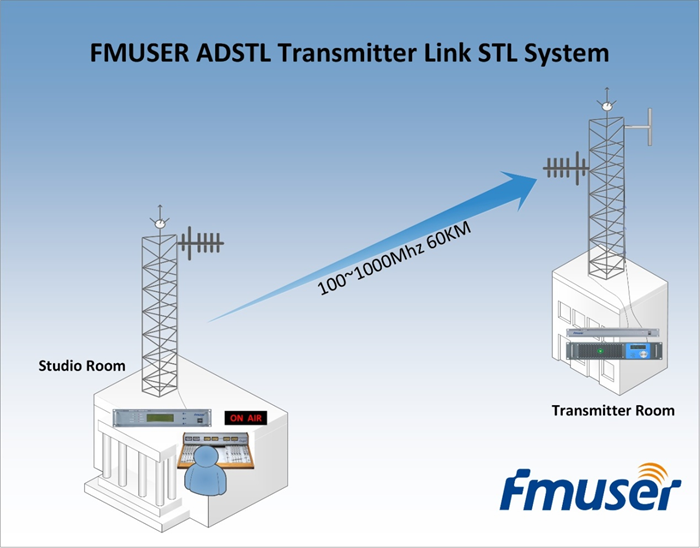

5. How FMUSER ADSTL Works?
1) How to use the Yagi Antenna as the STL antenna?
Generally, the STL antenna is a Yagi antenna in the studio transmitter link system, which can be used for vertical and horizontal polarization, providing good directivity. Excellent Yagi antenna usually has the characteristics of excellent radio ease of use, high gain, lightweight, high quality, low cost, and weather resistance.
In this affordable studio to transmitter link package, two Yagi antennas are included as STL antennas, they will be installed respectively on the broadcasting antenna tower of the studio and the transmitting tower, and will be connected with the STL radio link transmitter (broadcast studio) and the STL radio link eceiver (transmitting tower). Meanwhile, two 30-meter long RF antenna feedlines will be connected with the STL transmitter and the STL receiver respectively on the studio tower and transmitting tower and work as a part of the radio studio transmitter link system of HD-SDI audio and video.

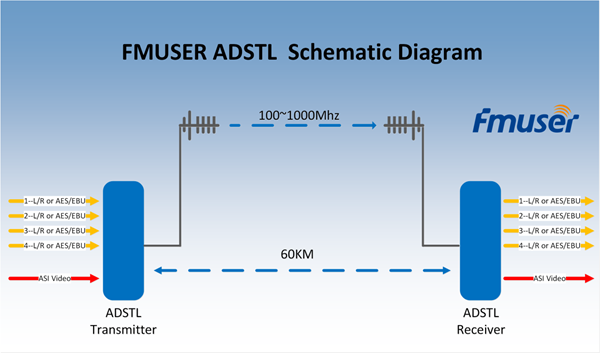

2) How to use the STL Transmitter and STL Receiver?
The studio transmits the recorded audio and video through the STL transmitter and Yagi STL radio link antenna and is received by the STL transmitter and STL antenna near the radio engineering room and the transmitting tower.
3) Studio Tower and Transmitting Tower
In a radio studio transmitter link, the STL transmitter will obtain the audio and video signals at the studio end and carry out ultra long-distance transmission (up to 60km) in the frequency range of 100 ~ 1000MHz through the broadcast antenna near the studio (usually Yagi antenna). Then the broadcast antenna installed on the transmitting tower (also Yagi antenna) will receive the audio and video signals from the studio direction
Finally, these high-fidelity audio and video signals will be radiated to your customers by the radio broadcast transmitter and the supporting broadcast antenna.
This digital studio transmitter link has better signal tolerance and lower signal loss in point-to-point audio and video signal transmission. At the same time, it also has the characteristics of ultra-low-cost and ultra-long signal transmission distance.
6. Technical Characteristics
1) GENERAL
l Operating frequency: 100~1000MHz
l Frequency step value: 10Khz
l Frequency deviation: ±10Khz
l RF transmit power: 10W
l RF transmit power deviation: ±0.1%
l In-band residual radiation: ＜- 80dB
l Higher harmonic radiation: ＜- 70dB
l Parasitic AM noise: ＜- 60dB
l Audio modulation mode: 32QAM@1M
l Video modulation mode: 15Bit/ s@5M
l Receiving sensitivity: - 78dBm
l RF output impedance: 50Ω
l RF output interface: N-head (other interfaces can be customized)
2) ANALOG AUDIO INPUT
l Input interface: XLR
l Output interface: XLR
l Input level: 15dBm～+15dm
l Input impedance: 600Ω
3) DIGITAL AUDIO INPUT (AES / EBU OPERATION)
l Input interface: XLR
l Output interface: XLR
l Input level: - 39dBFS～0dBFS
l Input impedance: 110Ω
l Stereo audio operation
l Signal to noise ratio: > 85dB (1KHz,0dBm)
l Distortion: < 0.05%(30Hz～15000Hz,0dBm)
l Audio frequency response: ±0.1dB(30Hz～15000Hz,0dBm)
l Stereo separation: > 80dB(30Hz～15000Hz,0dBm)
l Digital video operation
l Input signal: ASI HD digital signal
l Input interface: BNC
l Output interface: BNC
l Input level: 1Vp-p
l MER： > 45dB
4) PHYSICAL DESIGN AND SPEC

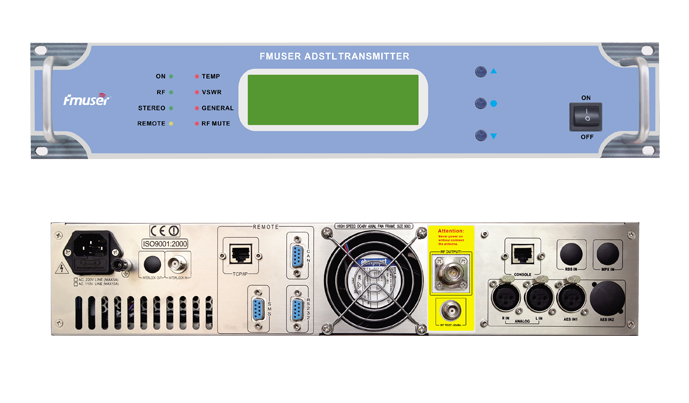

l Transmitter size: 2U (19 inches) width 440mm × Height 88mm × 450mm deep

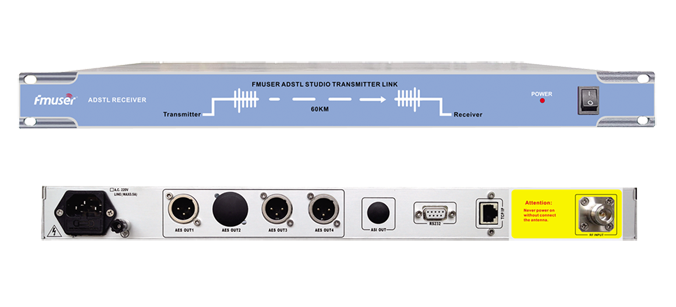

l Receiver size: 1U (19 inches) wide 440mm × Height 44mm × 300mm deep
l Transmitter weight: 13kg
l Receiver weight: 4kg
l Heat dissipation mode: Forced air cooling
l Fan noise: ＜ 50dB
5) SUGGESTED WORKING SPEC
l Relative humidity: ＜ 95%
l Altitude: ＜ 4500m
l Power supply voltage: 90VAC~260VAC/ 47Hz~63Hz
l Operating ambient temperature: - 10℃～+45℃
l Power consumption: 50W
7. Package Includes

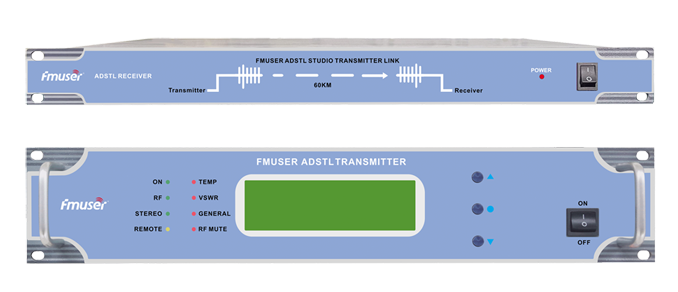

l ADSTL STL link transmitter * 1
l ADSTL STL link receiver * 1
l ADSTL Yagi STL link antenna * 2
l 30m RF Antenna Feedlines * 2
l Product Manual * 1
8. Q&A
1) Q：Is it legal to use the studio to transmitter link system in my country?
A: The answer is YES, the studio transmitter link is legal in most countries. In some countries, however, the use of studio transmitter link equipment will be restricted by local administrations, you will be asked to apply for a license, submit needed information for registration, otherwise, you may be charged for a penalty on broadcasting illegally. It's going to take a little while to get away from the chaos and that's exactly why FMUSER highly suggests you apply for a legal broadcasting frequency from the local radio or TV administrations so that if you buy studio to transmitter link equipment, you can broadcast legally. However, in most countries, you are permitted to use a radio tudio transmitter link as you wish, no need for a license and extra pays
2) Q: Can I buy studio transmitter link IP radio ADSTL from FMUSER when I am in the Philippines?
A: That's for sure, FMUSER is an expert manufacturer engages in the global supply of the affordable studio to transmitter link equipment, and we're pleased to have our Philippines customers on our list. You can discover all types of studio transmitter link equipment from FMUSER that varies in specific applications, from digital STL radio link to analog STL link, and need no worries about the studio transmitter link price! Buy studio transmitter link equipment of high quality and low cost? Let's talk!
Here is a list of countries to which we supply and you can buy studio to transmitter link equipment from:
Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Belarus, Bhutan, brother, Bosnia and Herzegovina, Brunei, Bulgaria, Burkina Faso, Burundi, Cape Verde, Kampuchea, Cameroon, Canada, Central African Republic, Chad, Chile, China, Columbia, Comoros, Congo, Democratic Republic, Congo Republic, Costa Rica, brother Ivory Coast, Croatia, Cuba, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, Dominican Republic, Timor Leste (Timor Leste), Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, eswatini, Ethiopia, Fiji, Finland, France, Gabon, Gambia, Georgia, Germany, Ghana, Greece, Grenada, Guatemala, Guinea, Guinea Bissau, Guyana, Haiti Honduras, Hungary, Iceland, India, Indonesia, Iran, Iraq, Ireland, Israel, Italy, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kiribati, South Korea, North Korea, South Korea, Kosovo, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Libya Liechtenstein, Lithuania, Luxembourg, Madagascar, Malawi, Malaysia, Maldives, Mali, Malta, Marshall Islands, Mauritania, Mauritius, Mexico, Micronesia (Federated States of), Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Myanmar (Myanmar), Namibia, Nauru, Nepal, Netherlands New Zealand, Nicaragua, Niger, Nigeria, northern Macedonia, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Poland, Portugal, Qatar, Romania, Russia, Rwanda, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Samoa, San Marino Sao Tome and Principi, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon islands, Somalia, South Africa, Spain, Sri Lanka, Sultan, Sultan, southern, Suriname, Rui Dian, Switzerland, Syria, Taiwan, Tajikistan, Tanzania, Tanzania, Tanzania, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, United Arab Emirates e mirates, United Kingdom, Uruguay, Uzbekistan, Vanuatu, Vatican City, Venezuela, Vietnam, Yemen, Zambia, Zimbabwe.
Of course, if you're not from either one of the countries listed, please make sure to contact our sales team, and one of our members will provide every single step in detail to help choose the best STL link system throughout the buying.
3) Q：How do broadcasters link the studio to transmitter？
A: Let's say that there is a broadcast group that bought ADSTL from FMUSER, and here is how the each part of the studio to transmitter link equipment will be working: once the studio transmitter link is ready-steady, the studio will send the audio and video to the transmitting antenna tower, with the signals transmitted by the STL link transmitter and the Yagi antenna, and finally be received by the studio transmitter link receiver and another Yagi.
4) Q：Where to borrow a radio station studio transmitter link system from?
A: The microwave STL link system is very expensive among all radio studio transmitter links, so many broadcasters will choose to borrow a used studio transmitter link. Obviously, to buy studio transmitter link ADSTL from FMUSER equals almost the same price as renting a microwave-type STL link system. Maybe you need no longer need to pay for extra studio to transmitter link system price of renting, instead, ask for the latest quotation of ADSTL seems to be a better choice. If you need more spec on ADSTL (pictures, videos, and instructions are free to use), leave your message, we will reply to you as soon as possible.
5) Q: What is the studio to transmitter link price?
A: The prices vary from studio transmitter link manufacturers and types of studio to transmitter link equipment. If you have enough budget, you can consider buying from Rohde & Schwarz. The price is about $1.3W. If the budget is not enough and still has a need for high-quality audio and video transmission, you can consider buying affordable studio transmitter link from FMUSER. It takes only 3k-5k USD for a complete system with everything included (e.g., STL transmitter, STL receiver, antenna, and accessories)
6) Q: Which licensed microwave bands are usually used?
A: Above 40GHz is allowed in the USA. According to FCC, early technology limited the operations of these systems to radio spectrum in the 1 GHz range; but due to improvements in solid-state technology, commercial systems are transmitting in ranges up to 90 GHz. In recognition of these changes, the Commission adopted rules allowing the use of spectrum above 40 GHz
This spectrum offers a variety of possibilities, such as use in, among other things, short-range, high-capacity wireless systems that support educational and medical applications, wireless access to libraries, or other information databases.
However, not every country follows this principle. It is recommended to have a check on the licensed radio bands in your country to prevent any personal illegal broadcasting. FMSUER provides a variety of frequencies for the studio to transmitter link so that you are no longer limited by the special permission of the local radio adminstrations. The frequency bands provided by FMSUER include 100MHz-1000MHz, 433-860MHz, 2.3-2.6g, 4.9-6.1g, 5.8G, 7g-9g.
We will provide low cost studio transmitter link equipment of different models and frequency bands so as to meet your requirements. Contact our RF experts, learn more about the customized service of studio transmitter link equipment and frequency bands from FMUSER.
7) Q: How to find out if the studio transmitter link is licensed or not
A: Before using or buying studio transmitter link equipment of any species, make sure you have contacted the local radio and TV administration to apply for available qualification certificates or provide corresponding procedures as required. Our expert RF team will assist you handling in the subsequent matters of obtaining an STL link system license - the whole process from equipment assembly to the 100% safe system operation
| Total:4800 USD | |
| Item:4800 USD Shipping:0 USD |
|
|
|
|
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter ：100M ~1KM
5W ~15W FM Ttransmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~10KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
