FMUSER FB-01 OB KIT Interview Camera Portable Live Link Wireless Transmission Solution

Total:25717 USD

Item:25550 USD   Shipping:167 USD

FMUSER FB-01 OB KIT Interview Camera

Portable Live Link Wireless Transmission Solution

Overview:
FMUSER FB-01 OB KIT is the Outside Broadcast kit for Radio and TV station.
Outside Studio broadcast equipment where we could cover a live event from any location outside the studio and relay back the signal from the ground or location of the event back to the on air studio for broadcast.
Whether reporting live from a football match , interview or other events, reporting from the scene of an accident,
covering a political rally or simply linking back from a road-show or concert.

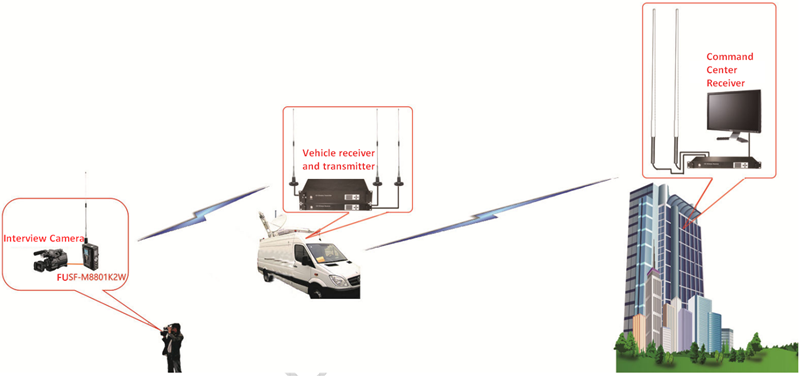

Transmission diagram:

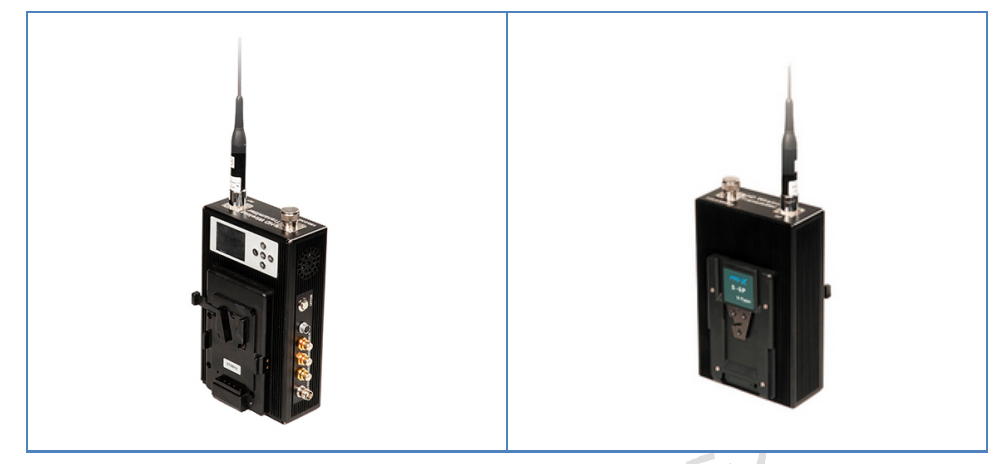

Camera to motor vehicle—CTV2W


Product Description:


CTV2W series COFDM mobile wireless image real-time transmission system is a slab-type wireless video transmitter produced by our company. Adopting the current leading COFDM modulation technology, it has relatively narrow air bandwidth (2MHz) and strong anti-multipath interference capability, overcoming the problems caused by multipath reflection and occlusion of image transmission under analog technology and conventional modulation technology. High-speed motion shooting and real-time non-line-of-sight transmission of high-quality images, especially suitable for complex environments. This series of products is equipped with radio and television standard bayonet, which is suitable for TV broadcast, news interview and other fields.
●  Low power consumption, good heat dissipation, low operating temperature (≤45°C)
● Integrated design, with battery and external power interface, easy to use
● High image quality, clear and stable image, no tailing
● Strong diffraction ability, long transmission distance, support for non-line-of-sight transmission
● COFDM modulation technology and MPEG-2 image compression technology, power stable, dynamic power adjustable



Radio frequency modulation section
Working frequency
138MHz ~ 4400MHz frequency can be customized
Output Power
1~5W LCD adjustment
Modulation
COFDM
Channel bandwidth
2/2.5/4/8MHz
Error correction method
FEC@Viterbi (1/2, 2/3, 3/4)
Protection interval
1/32, 1/16, 1/8, 1/4
Encryption
Manual AES double encryption
System part
coding
Meets H.264 technical standards
Code stream
2Mbps to 12Mbps
System delay
300ms
Bit error rate
≤10-6
Transmission distance
Airborne use > 70 km; maritime applications > 30 km; urban applications > 6 km; suburban applications > 9 km
Way of use
Buckle plate
Audio and video part
Compression format
H.264
Audio and video input
Digital HD-SDI, analog CVBS audio or video or digital HDMI, analog CVBS audio and video (optional)
Image clarity
HD1080P (1920*1080), compatible with 1080I, 720P, 480P and SD
Image frame rate
Standard 24, 50, 60 frames / sec, compatible with other frame rates
Video input physical interface
TNC, BNC female, HDMI standard interface
Audio input physical interface
TNC, BNC female, HDMI standard interface
Other parts
Parameter display
Self-contained LCD display, adjustment parameters
powered by
Radio and TV special battery DC14.4V SONY V buckle
Dimensions
200 × 125 × 50 mm (L × W × H)
weight
1.5Kg

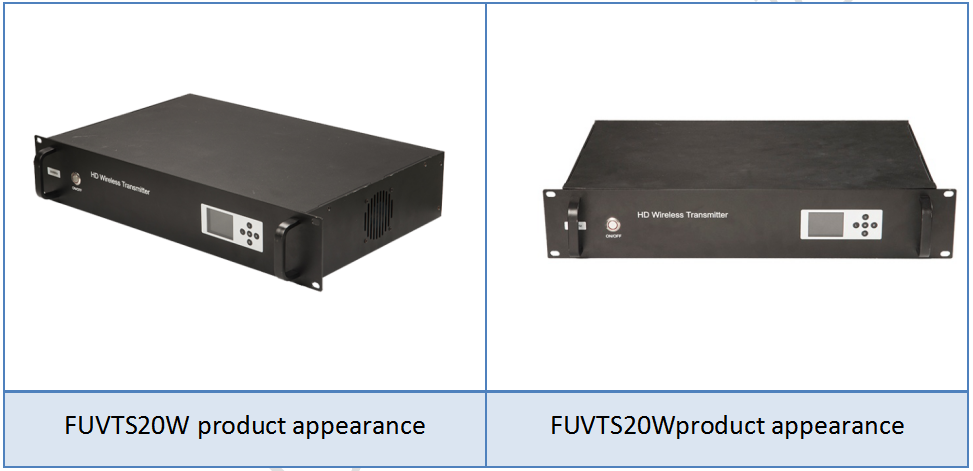

20W car-mounted HD wireless transmitter
Motor vehicle to Station--FUVTS20W


 FUVTS20W series wireless image transmission system is a broadcast-level high-definition vehicle image real-time transmission system produced by our company. Adopting the current leading COFDM modulation technology, it has relatively narrow air bandwidth (2MHz) and strong anti-multipath interference capability, overcoming the problems caused by multipath reflection and occlusion of image transmission under analog technology and conventional modulation technology. High-speed motion shooting and real-time non-line-of-sight transmission of high-quality images, especially suitable for complex environments. It can be placed in a high-speed moving car, or it can transmit video signals and two-way voice signals (customized) to the command center.
● Provide HDMI interface image quality up to 1080P high-definition image, high image quality, clear and stable, no tailing
● Strong diffraction ability, long transmission distance, support for non-line-of-sight transmission
● H.264 compression coding method and COFDM digital modulation method
● Power stable, dynamic power adjustable

Project
Description
Modulation
COFDM
Working frequency
300-900MHz; can be customized according to requirements
Transmit power
43dBm
Channel bandwidth
2/2.5/4/8MHz adjustable
Encryption
AES
Forward error correction
1/2, 2/3, 3/4, 7/8
Protection interval
1/4, 1/8, 1/16, 1/32
Code stream
2Mbps to 12Mbps
Bit error rate
≤10-6
Transmission distance
Airborne use >150 km; maritime application: >70 km; urban application >10 km; suburban application >15 km
Video input
HDMI (supports 1080P, 1080i, 720P, 720i) / SDI optional
Audio input
Left and right channels
Video compression
H.264/MPEG-2
RF interface
N-type female
Parameter control method
Adjust parameters through LED digital display panel
Encryption
128-bit AES (natural key)
Operating Voltage
AC220V
working environment
-10~70°C
Dimensions
19" 2U standard chassis; 485*340*90 (mm)

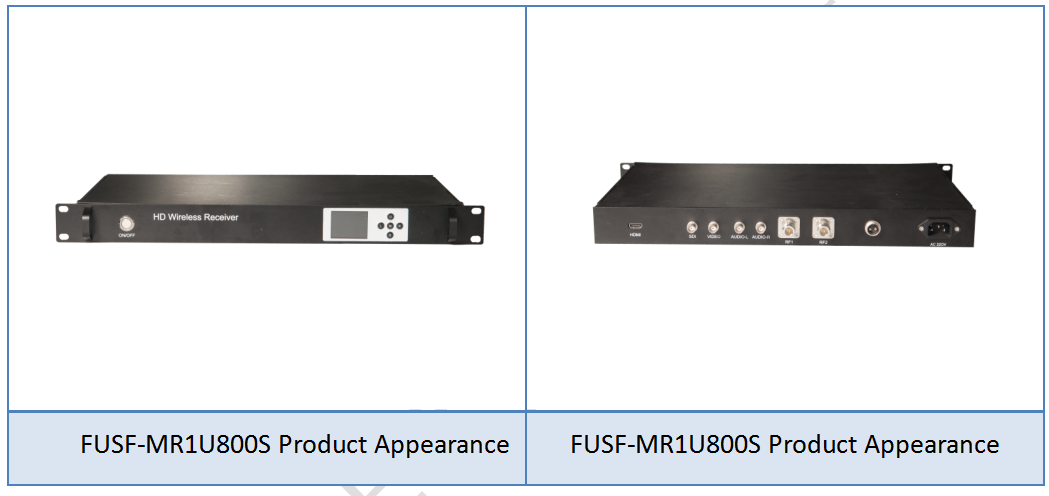

 Chassis mobile video receiver

FUSF-MR1U800S Chassis mobile video receiver is a digital wireless receiving device developed by our company. It is used with various mobile video transmitters of our company to receive audio and video signals transmitted by the front end and display in real time on the back end. The device adopts a standard 1U rack design and can be easily installed in the standard cabinet of the equipment room. With its own parameter display, the signal intensity of the front-end transmitter is displayed in real time, and the adjustment parameter button is provided, and the receiving signal moves reliably.
l l 1U rack design
l l Simple and efficient use of the control interface
l l Receive wireless signals in high-speed mobile or non-line-of-sight conditions for remote video transmission and monitoring
l l Wireless channel encryption using AES128 bit


Radio frequency demodulation section
Receiving frequency range
138MHz~2470MHz
Demodulation technology
COFDM
Channel bandwidth
2/4/8MHz, optional
RF input level
-94dBm~-15dBm (8M bandwidth) /-98dBm~-15dBm (2M bandwidth)
RF input impedance
50 ohms
RF input connector
N head
Demodulation method
COFDM
Constellation mode
QPSK, 16QAM, 64QAM (optional)
Forward error correction
1/2, 2/3, 3/4, 5/6, 7/8 (optional)
Number of carriers
2k,
Protection interval
1/32, 1/16, 1/8, 1/4 (optional)
Video decoding
MPEG-2MP@ML
Screen aspect ratio
4:3 16:9
Output Interface
HDMI.BNC standard definition
Video image
1920*1080P@8MHz 720*576@8MHz
Audio output mode
Stereo unbalanced 300/ 200mv
Audio output
2Audio output +2Video output
Operating Voltage
AC220V/DC12V <2A
Operating temperature
-20 ° C ~ +50 ° C
physical dimension
480*260*45(1U) chassis
equipment weight
2.5kg

Customer demand: broadcast video wireless transmission, front-end SDI / HDMI high-definition camera with a slab-type wireless transmitter, the image is transmitted to the nearby 3KM broadcast car, the broadcast car as a relay to install the rack receiver and vehicle-mounted transmitter, and finally Transfer the image to the studio at 15KM.
Total:25717 USD

Item:25550 USD   Shipping:167 USD



How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter :100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
