FMUSER 10KW Professional Broadcast FM transmitter + 8 Bay Dipole Antenna + 60meters coaxial cable + connectors

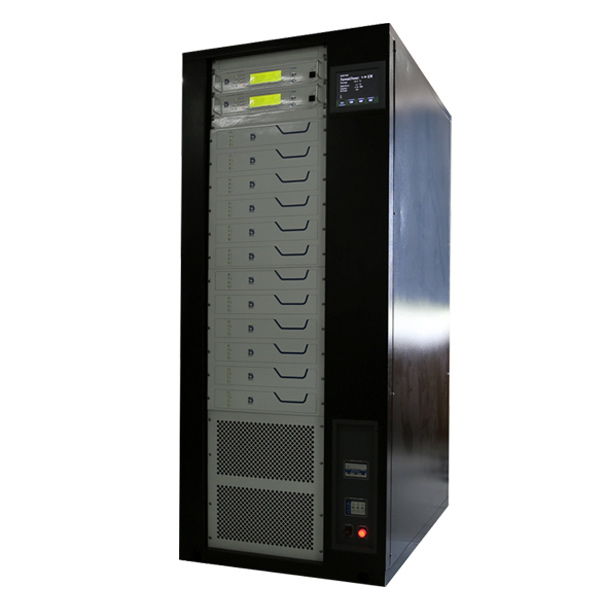

FMUSER CZH618F-10KW FM transmitter is innovative FM broadcast transmitter for radio stations,hot-plug amplifier module and double digital exciters(optional),automatically change.

Features:

1. Twelve Units 1KW hotplug RF power modules.Total output power is extremely stable thanks to AGC(Automatic Gain Control).
2. Ten units 2.5KVA switched power supply modules working parallel.
3. 12-way High efficiency combiner with patent technology.
4. Two All-digital 30W exciters with switcher used to drive each module directly(optional).
5. Analog and digital(AES/EBU) audio signal input directly.
6. 8-inch Color LCD with touch panel displays all the parameters in real time.
7. Five kinds of protect method by MCU, like over Pf,over SWR,over Temp,Voltage,Current.
8. Real hot-plug structure,the modules can be repairing at non-stop condition.
9. RS232/RS485 Communication interface ready for remote system.

1. Frequency Range: 87.0MHz~108 MHz
2. Frequency Setting step: 10KHz
3. Carrier Frequency precision: 200Hz
4. Residual Wave Radiation: 75dBc
5. Analog audio Input Impedance: 600Ω, Balance
AES/EBU digital audio input impedance: 110 Ohm, Balance
6. Separation: 50dB,30Hz~15KHz
7. Audio Input Level: -10dBm~+10dBm, step 0.01dB
8. S/N: 75dB (1kHz, 100%modulation)
9. Audio Harmonic Distortion: 0.1%
10. Audio response: 0.1dB(10Hz~15KHz)
11. Output Load Impedance: 50Ω
12. Output Power: 0~10KW
13. Pre-emphasis: 0μS, 50μS, 75μS
14. Deviation: ±: 75kHz
15. Pilot Frequency: 19 kHz; 1Hz
16. RF Output Interface: 3+1/8′
17.Size: Width(144mm),Height(1950mm),Depth(900mm)
18.Weight: 550KG

8 bay dipole antenna

8-lay FM Diople Antenna FM-DW1 ×8 is FM transmitting antenna array.It consists of 8 pcs FM-DW1 and 8-way power splitter with dividing cable and connectors.The polarization is vertical.It made up of high quality stainless steel and high quality copper. FM-DW1 ×8 is suitable for high gain situation.

FM-DW1× 6 DIAGRAM:

dipole antenna

FEATURES
All FM bandwith
Vertical polarization
High gain
304 stainless steel material
DC grouding lightning protection
～

SPECIFICATIONS
1.Frequency Range: 88.0MHz～108.0MHz
2.Gain: 10.5dBd
3.Input Power: 10KW
4. Impedance: 50Ω
5.VSWR: <1.10(specified frequency)
< 1.25 (all FM band)
6.RF Intput connector: 3-1/8 for 10KW
7.Wind Load: 80.8kg.160km/h
8.Weight: 75KG

Package Include:

1unit 10KW FM Transmitter

1set 8 bay FM-DV1 Dipole Antenna

1pack 3-1/8" 60meters coaxial cable with connectors

How far(long) the transmitter cover?

The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.

EXAMPLE 5W FM Transmitter use in the city and hometown:

I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).

I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).

I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).

Below are the approximate range of different power FM Transmitters. ( The range is diameter )

0.1W ~ 5W FM Transmitter ：100M ~1KM

5W ~15W FM Ttransmitter : 1KM ~ 3KM

15W ~ 80W FM Transmitter : 3KM ~10KM

80W ~500W FM Transmitter : 10KM ~30KM

500W ~1000W FM Transmitter : 30KM ~ 50KM

1KW ~ 2KW FM Transmitter : 50KM ~100KM

2KW ~5KW FM Transmitter : 100KM ~150KM

5KW ~10KW FM Transmitter : 150KM ~200KM
