    A portable FM transmitter that can be used to replace a FM microphone







    Notes:

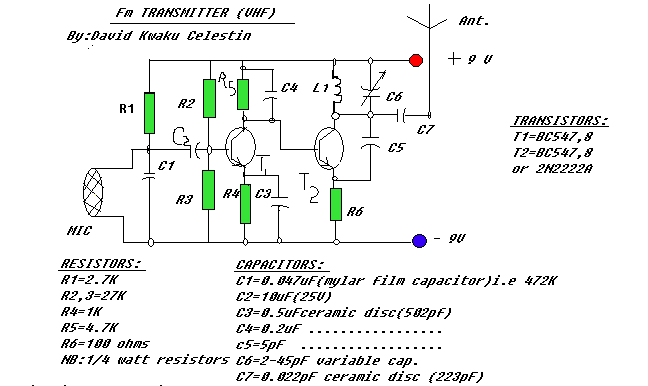

    This simple transmitter operates from a 9V battery as shown above. I personally built this for a purpose. This is how it happened:- "members of my singing group find it difficult to handle a FM mic in Church. The choir sings in acapella form and the congregation expect us to perform well. The old FM mic system was not a perfect solution, so I built this kit and a mixer for the receivers. using three separate transmitter circuits and a mixer on the receiever, the choir voices were perfect and cleanly reproduced."

    From the notes I made experimentally, C3 is vital to the circuit and without it the circuit may become unstable. C4 is in parallel with C5 and presents a moderate load impedance. Finally all transistors are NPN. The circuit works well and has proved reliable.

    L1 Details:
    In the circuit L1 has 6 turns and has a diameter of 5.5mm and has a length of 4.5mm. Based on the formula for an air cored inductor:



                           Where L1 = inductance in uH

    	                      r = radius of coil in inches

    		              l = length of coil in millimetres (mm)

    		              n = number of turns on coil





    Using the above values, the inductance of L1 can be calculated. A diameter of 5.5mm = 0.22 inches, the radius is half this value or 0.11 inch, the length is 4.5mm and number of turns, n = 6. This gives L1 a value of:
