FMUSER RDS-C RDS Encoder for FM Transmitter with MPX SCA Input

Total:1690 USD

Item:1690 USD   Shipping:0 USD

 FMUSER RDS-C ENCODER for FM Transmitter with MPX SCA







Overview


The FMUSER RDS-C Encoder offers the most popular RDS functions at an exceptional Price/Quality ratio. Delivered with a quick-start and a connection diagram, the RDS-C Encoder is easy to install and has a user-friendly interface (useable by non technical staff).
The radio data system not only gives your listeners an interactive and informative addition to your stations audio content, it also opens up revenue generation possibilities.
Whether you wish to display your station’s name on your listeners radios, stream out artist and title data or use the RDS data channel for your own in house data applications you’ll be able to do it with a FMUSER RDS-C encoder.

Features

--The RDS encoder can work alone
--Direct digital RDS signal synthesis
--Effective design based on high-performance single microcomputer, low power consumption
--Compatible essentially with all FM broadcast transmitters
--Setup is provided easily by a PC computer; "Now Playing" features,Presets, Task Scheduler, Settings lock
--Powerful control software with advanced facilities, free download, on-line documentation
--RDS services supported: PI, PS, PTY, PTYN, TP, AF, TA, DI, M/S, PIN, ECC, LIC, RT, TDC, IH, ODA, CT, EON, RT+
--Easy RDS settings wizard, including automatic PI calculation
--Complete solution for your radio station: RDS Scheduling, External text sources,
--Up to 16 dynamic external text sources
--Powerful text processing tools
--External text source can control any RDS service (for example TA and PTY)
--Software OS supported: Windows 9x, ME, NT, 2000, XP, Vista, win7, win8



Technical Specifications

RDS Signal: Compliant with the EBU document tech 3244 (3/1984) and suppl. nr. 1 (3/1987), and CENELEC EN 50067
RDS Services directly supported: PI, PS, PTY, TP, AF, TA, DI, M/S, PIN, RT, RT+TMC, EON, PTYN,ECC, LIC, TDC, IH, CT, ODA
RDS signal subcarrier frequency: 57kHz
Sampling rate: 361kHz
Bandwidth: ± 2.4kHz (50dBc)
Recommended FM deviation: 6.8kHz
Pilot PLL 57÷19KHz capture range: 8Hz
Stereo pilot frequency required: 19000Hz ± 2Hz
Pilot tone level: min. 120mVpp (-26dBu)
Phase shift adjust MPX transmission: Full range, in 9.5 deg. Steps
Output level adjust default: 0 - 1.4Vpp
Output impedance: < 30Ohm
Audio/MPX/Pilot input:< 10KOhm
Pass-through voltage gain: 2Hz - 100kHz (0,01dB)
Signal connectors: unbalanced BNC-female
Data connector: RS-232 (DTE, 9 pins), bi-directional
Communication speed:software selectable 1200, 2400, 4800, 9600, 19200bps
Communication mode: 1 stop bit, 8 data bits, no parity, ASCII or UECP
TA switching: by software or external switch
Program switching: by software or external switch
Expansion bus type: IIC, 400kHz
Mains: 110-220Vac ±15% 50÷60Hz
Power consumption: 20VA
Temp. operation: 0°C ÷ +40°C
Relative air humidity: 90% non condensing
Dimensions: 19”, 1U, 320mm depth




Appearance and Illustration

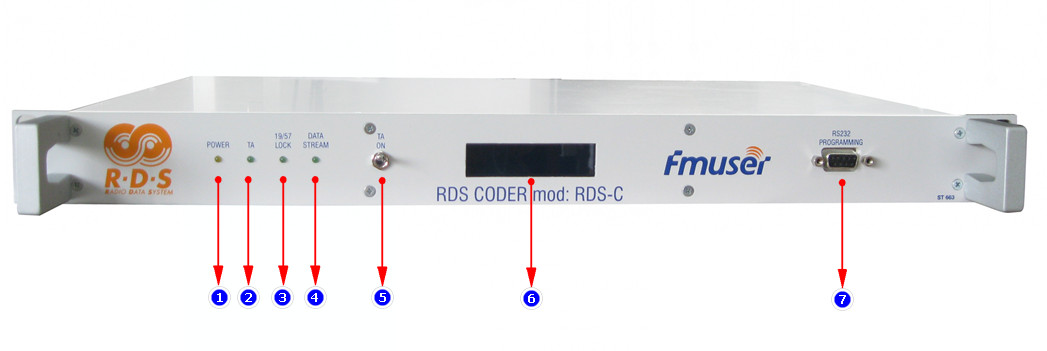

Front Panel Illustration:



1. Poewr LED
2. TA LED
3. Pilot tone indication / Firmware update
4. Operation / Receive data / Error
5. External TA/EON1TA switch
6. Screen display
7. RS-232 Interface

9pin D-SUB male (DTE) connector:
1: Not used / +5 V
2: Receive Data (RDS encoder)
3: Transmit Data (RDS encoder)
4: Connected to pin 6
5: Ground
6: Connected to pin 4
7: Connected to pin 8
8: Connected to pin 7

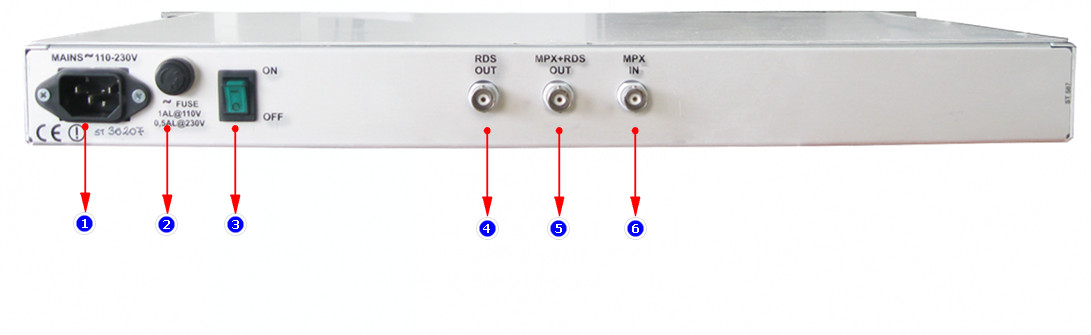

Rear Panel Illustration:

1. AC 110V-230V Power Input
2. FUSE
3. Power Switch
4. RDS OUT
5. MPX+RDS OUT
6. Pilot or MPX Input




Windows RDS control software System

The software can run in demo mode without the RDS encoder connected.

Magic RDS 3 - default Windows control software
Download the Software here:


Note: The RDS encoder contains two types of memory. These are marked as RAM and EEPROM. Like any other computing system the RAM holds all operational data which are also used for transmission whilst the EEPROM is used for the data storage during power-off. By default the button Send will fill the RAM only. The button Store will fill the RAM and also stores the data into EEPROM. The Store button behavior can be changed in Options - Preferences - Buttons.

If the user forgets to store the data into EEPROM, the settings will be lost when the power is disconnected.




FM Transmitter Connection


Basic rules:
The RDS signal must be fed into modulation signal (added to MPX signal if stereo encoder is used).
If stereo encoder is used, one of its outputs (MPX or pilot tone) must be fed into the RDS encoder input to meet the synchronization requirement.
Following figures show various situations and corresponding methods of connection:




Separate stereo encoder - default connection.



Stereo encoder with only one MPX output provided.



FM transmitter with only one MPX input provided.



Both stereo encoder and FM transmitter with only one MPX connector provided - loopthrough mode. It is recommended not to use this mode if any of the other connections are possible.












FM transmitter with integrated stereo encoder.




FM transmitter with integrated stereo encoder, Only have a AUX in / RDS in / SCA in .
In case of mono transmission (no stereo encoder used) the RDS encoder input may be left unconnected (since there is no need of external synchronization) or it may be used for the audio signal injection in the case that the FM transmitter has only one input connector.




Package Include:


1* FMUSER RDS-C Encoder
1* User’s manual
1* BNC cable
1* RS-232 cable
1* Power Cable
