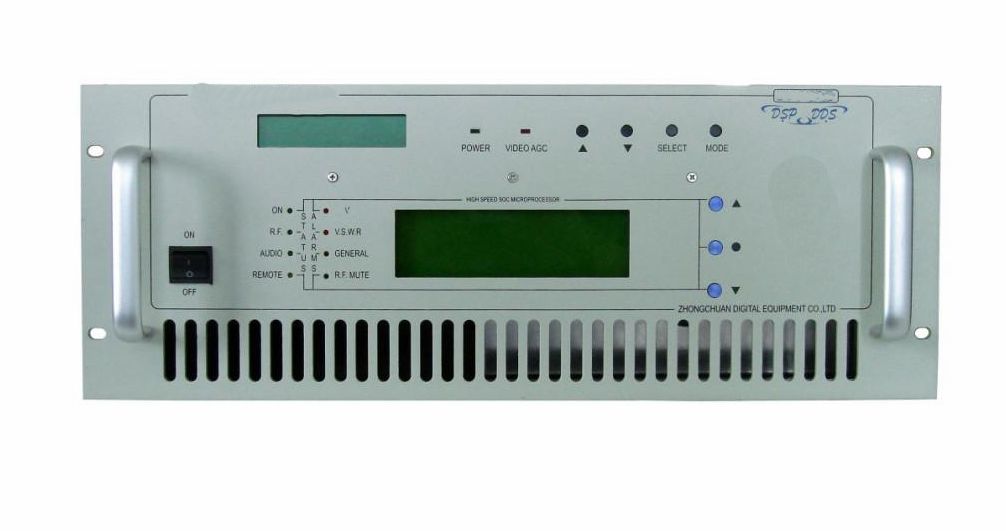

FMUSER 300W TV Transmitter UHF/VHF
Power: 300W in a 4U height 19' rack
Professinal designed for TV stations
Big LCD displays all parameters
Switched power supply
High reliability
Low price
300W TV Transmitter
Overview:
This product is the all solid-state Single-channel TV Transmitter, it adopts professional TV exciter, and it can use the single/duel exciter configuration, switching automatically.
This transmitter has a variety of linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.
It can prefabricate and control the half-power output, and it has remote control telemetry interface.
The power amplifier used LDMOS FET, the analog and digital are both compatible, and it used high-quality switch parallel power.
The power amplifier and power supply are both used hot-plug devices.
The power loss and standing wave of the one-time synthesis power combiner is small.
The module of power amplifier display the working parameters in real-time.
The whole machine has the protection of over-current, over temperature, over power and over-standing wave ratio.
The master touch screen displays the working parameters of the whole machine and the module of power amplifier (PA) in real-time.
The 300W transmitter is installed in one 19inch chassis; it’s suitable for medium or small TV station.
Features:
● The whole machine is single-channel, image with audio together.
● The management and monitoring are intelligent and on network, it has the external PC interface.
● It has the technical data detection, monitoring systems and full-featured computer control software with auto-diagnostic function. All technical parameters can be read through the LCD display panel.
● Comprehensive protection measures can reduce the damage of equipments. This machine has protection about no video; VSWR is too large, overheating, over-stimulus, missing phase protection and lightning protection. The switch has protection about overvoltage, over current, under voltage, over temperature, short circuit and lightning protection.
● All power supplies are switching power supplies; high efficiency, excellent regulator range, strong adaptable from the change of the external voltage.
● It adopts modular design concept.
● Hot-pluggable design: Power amplifier and switching power are supporting the Hot-plug, it’s easy to debug and maintenance; improve the reliability.
● The fan is built-in the chassis, the transmitter has a compact structure and a beautiful shape.
Technical Specifications:
Overall performances:
1. Working frequency： VHF/UHF Channel arbitrary choice
2. Output power： 300W
3. Output impedance： 50Ω
4. Inter-modulation distortion： ≤-50dB
5. Useless transmission： In adjacent channel ≤-40dB
Out adjacent channel ≤-60dB
6. RF output interface： N
7. Power supply： Single-phase 220V
8. Shape size： 540mm*670mm*260mm
9. Weight： 45KG
Image performance：
1. Video frequency input level： 1VP-P positive polarity
2. Video frequency input impedance： 75Ω
3. DG： ±8%
4. DP： ±7°
5. Luminance nonlinear： ≤12%
Sound performance:
1. Audio input level： 0dBm±6dB
2. Audio input impedance： 10KΩ (imbalance)
3. Maximum frequency deviation： ±50KHz
4. Harmonic distortion： ≤1%
| Total:5654 USD | |
| Item:5194 USD Shipping:460 USD |
|
|
|
|
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter ：100M ~1KM
5W ~15W FM Ttransmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~10KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
