M002A 3 kilometers broadcast circuit

Real R & D by the Min-efficient wireless transmission of MEC002A sound module mini is small, the RF output power, the sound sensitivity is high, the output frequency is relatively stable, etc., use it to form the FM transmitter circuit is simple, easy to build, debug convenience, only one level in the following C1971 posed by the RF power amplifier circuit can be realized within three kilometers of the FM transmitter circuit. Circuit structure quite simple, and thus more suitable for the production of amateur radio enthusiasts.

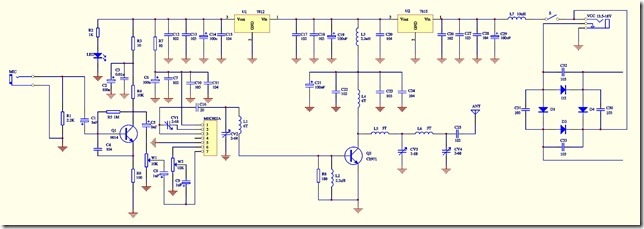

Figure 1 is composed of three kilometers from the MEC002A mono FM transmitter circuit, can be seen, the RF circuit are actually only two, one related by MEC002A and the surrounding radio frequency control devices constitute the oscillator output circuit, another level C1971 and related components from the composition of C RF power amplifiers, mainly supply other components and microphone amplification and filtering purposes. Although MEC002A includes a microphone amplifier circuit, but for some units, the need for additional external microphone instead of using the module inserted within the high-sensitivity microphone amplifier circuit, in order to get a stable operating frequency, the circuit is set up multi-level power supply voltage regulator and filter circuit, where U1 (7812) for the MEC002A module to provide a stable 12V voltage, C12-C15 filter capacitor for the power to make a more stable operating voltage to ensure that the module will not work MEC002A changes in voltage to frequency shifts. R3, R7, and L3 for the interstage decoupling devices, can be effectively overcome using the same power between levels brought about by the mutual interference. Q1 and its peripheral devices constitute a microphone amplifier circuit, coupled to the audio output through C5 W1 to control the microphone volume, microphone volume controlled by the modulation of C8 coupled to MEC002A side (7 feet), the internal high-frequency oscillator circuit of MEC002A the FM. MEC002A the first 6 feet of its internal microphone audio amplifier output pin, the W2 control the sound sensitivity is coupled after the C9 to 7 feet of the internal high-frequency oscillator circuit MEC002A FM, who wish to make MEC002A the internal microphone does not work, only need to be suspended 4 feet, when the need to activate the internal microphone circuit, the 4 foot ground can be realized. CV1 is MEC002A RF output frequency control capacitor, by changing the capacitance, the output can MEC002A in the 68-118MHZ frequency range of changes. Basic coverage of the entire campus radio and FM radio bands. But once the change in output frequency, followed by an adjustment of RF power amplifiers have to follow in order to make the maximum RF output power, firing distances. Therefore proposed that the best time of purchase to specify the desired frequency, so that after the factory amp circuit will be set to maximum gain frequency. MEC002A 3 of the RF output pin to its feet, the FM wave modulated by the output pin through C16, CV2, L1 frequency network formed after the election sent to the Q2 (C1971) C amplifier consisting of base, MEC002A 1 foot for the power supply side, 5 feet for the power ground. Q2 work in the C state, the bias resistor to provide negative bias to its base, the output of the circuit efficiency can Bijia class higher, the precondition of the former class have to have enough incentive to power, the work on the 12V MEC002A under voltage, its output power is nearly 200mW, can drive the C amplifier. C1971 U1 to provide a stable 15V voltage, L5, L6, CV3, CV4 form frequency selective network, by adjusting the CV3, CV4 Q2 output power can effectively transmitted to the transmitting antenna, the whole work in the current 18V voltage of about to 800mA, RF output power is about 3W. This circuit also provides electricity supply function, D1-D4 form a full-bridge rectifier circuit, C30-C33 for the filter capacitor can reduce the AC ripple caused by electricity. Control the input AC voltage of about 18V. DC voltage for the machine work 18V, when using the 13.5-18V voltage U2 can be removed when not directly connected with a short jumper pin pad 1,3.

 200612184114153

1(点击上图可放大)

200612184116901

2

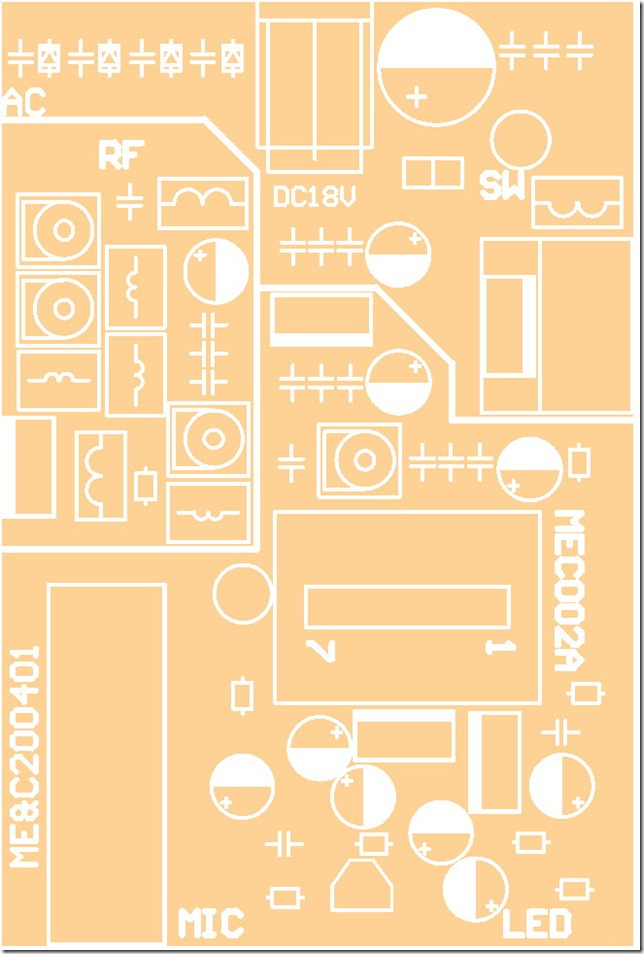

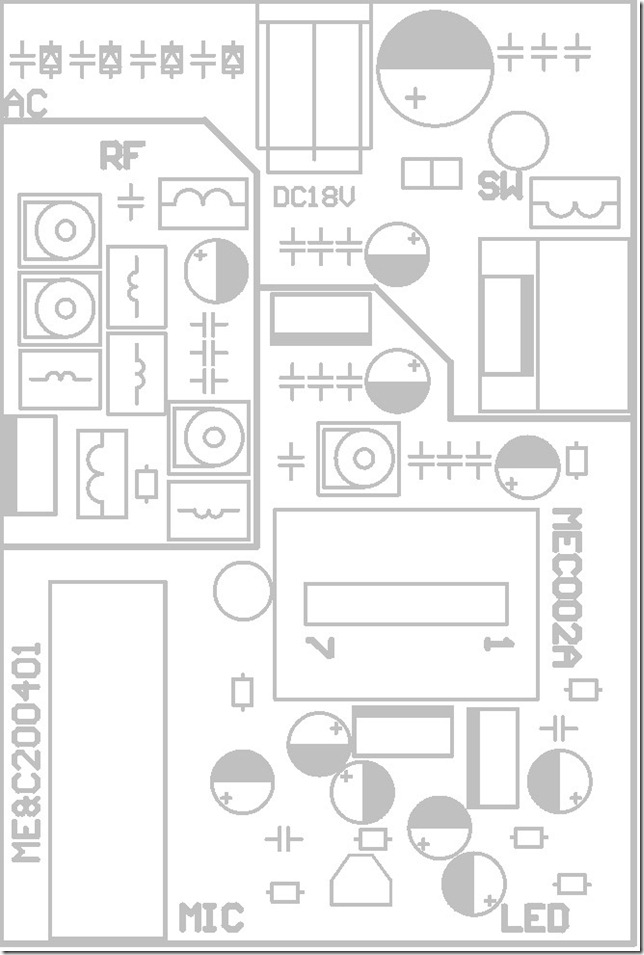

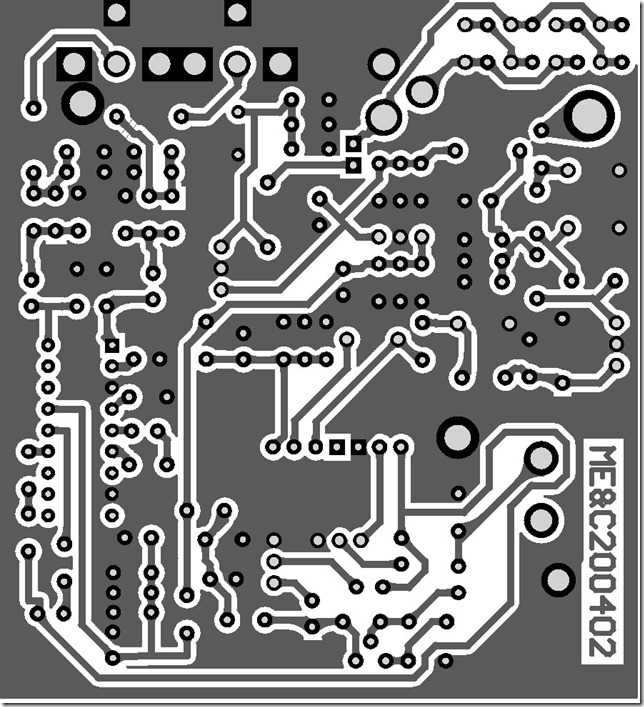

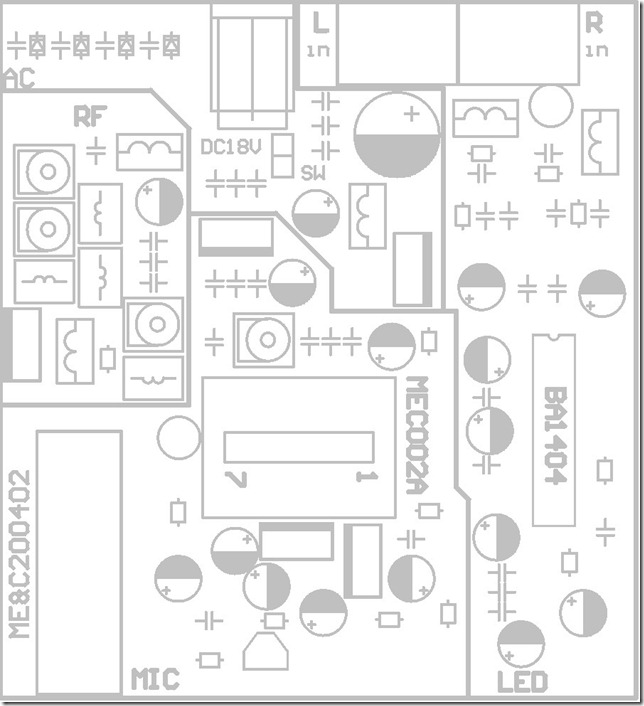

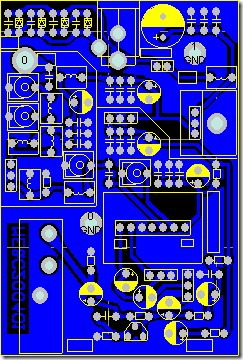

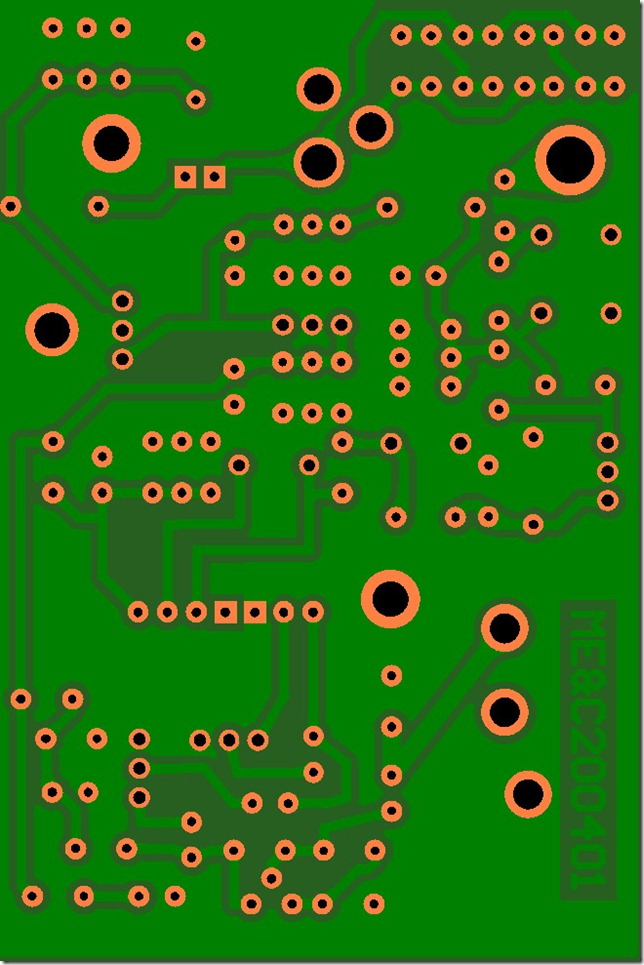

2为整机装配图,图3为该电路的焊接层电路板图,图4为元件装配图,图10为实物装配图。

 200612184116752          200612184117901

3                                          4

200612184118307          200612184119132

 200612184120795

5

200612184121230

6(点击上图可放大)

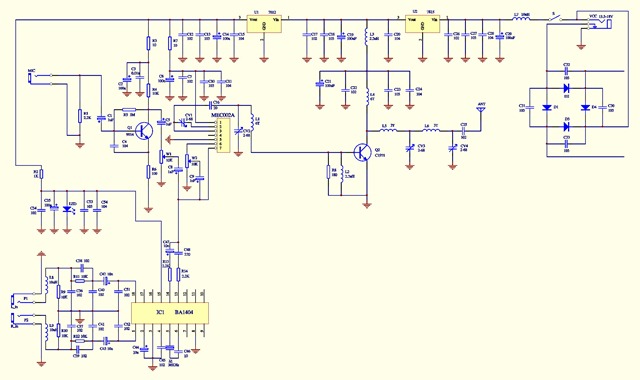

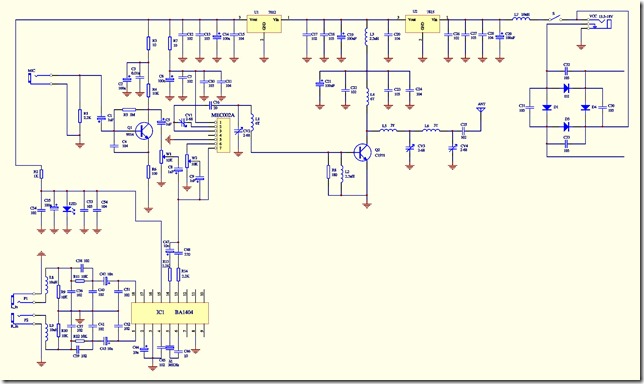

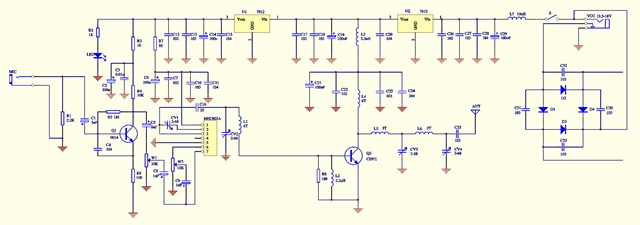

The cell broadcast, the present mono music lovers can not meet the needs of the majority, more listeners would like to receive high-quality FM stereo radio. Figure 6 Figure 1 is based on the increased level posed by the BA1404 FM stereo encoder circuit, the circuit can be further improved transmission quality, it can transmit FM stereo signal. BA1404 is a FM stereo transmitter IC modulation, where we give up part of its high-frequency oscillations do not, whichever is 13 feet directly to the output of the pilot signal 19KHZ and 14 feet on the MEC002A output FM audio signal to modulate the oscillator circuit . 1 and 18 feet have connected components, the FM pre-emphasis network, with the FM receiver to increase the network can effectively get the ideal frequency response, making the best reception quality. In addition to providing power LED also instructed to provide a stable working voltage BA1404. Firing board also set aside two microphone volume control potentiometer and power switch of the connection pad, the user can self-transformation diagram, together with the power switch and microphone volume control potentiometer.
200612184123564

7

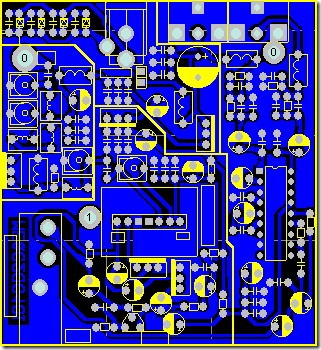

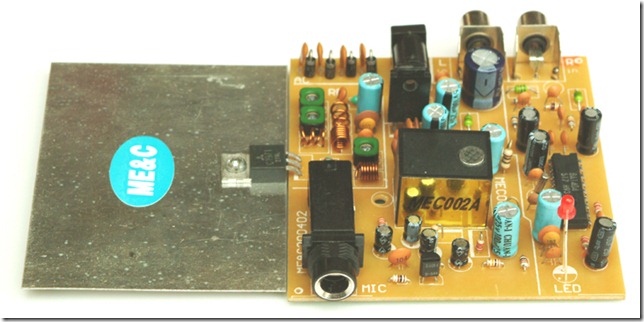

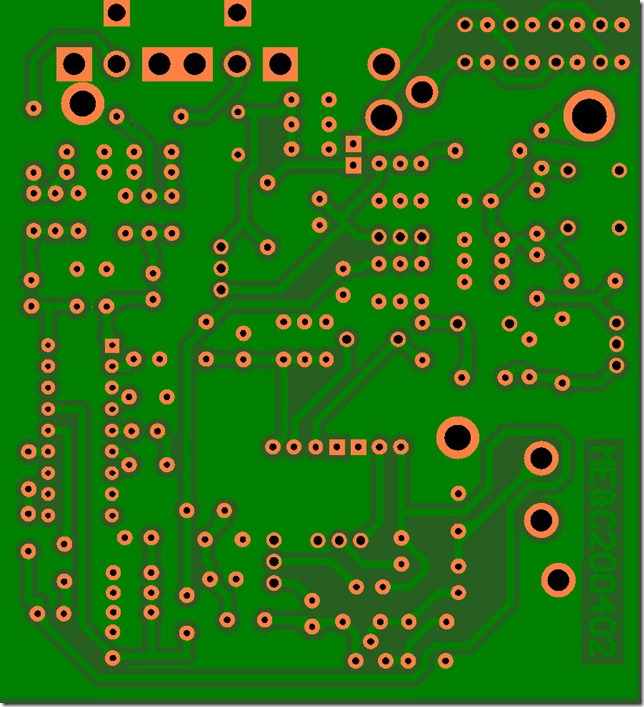

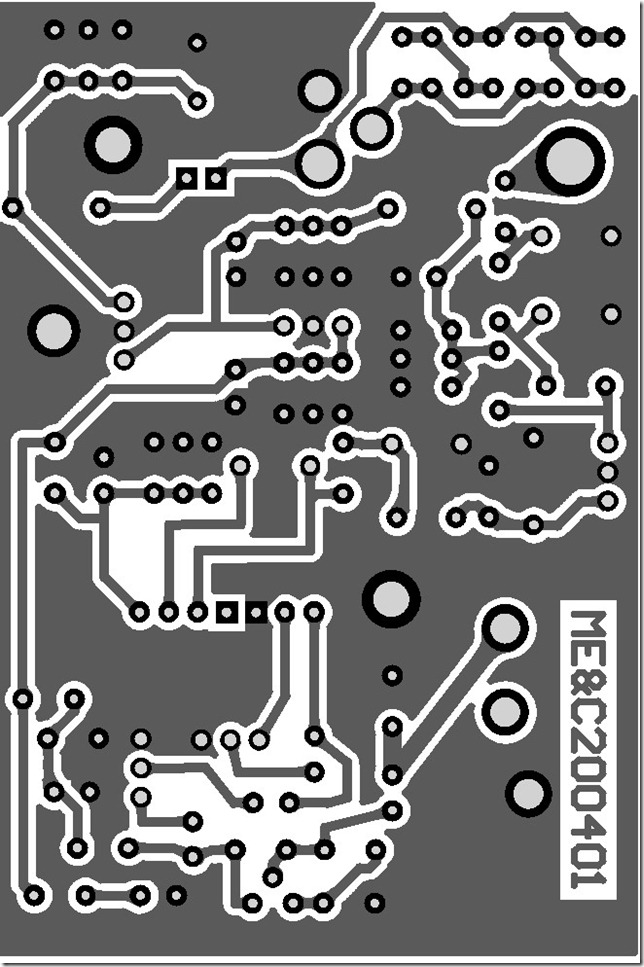

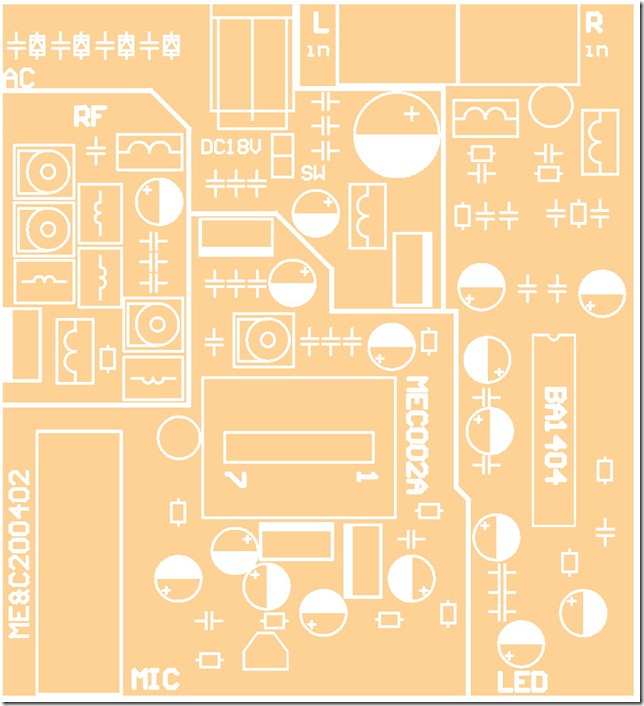

7为调频立体声三公里板的整机装配图,图8为该电路的焊接层电路板图,图9为元件装配图,图10为实物装配图。

200612184124670    200612184125208

8                                             9

200612184126904    200612184128168

200612184129425

10



Caution: (1) audio source and the antenna: the larger transmission power of the machine, it generates the field around the shield poor enough to affect the normal operation of electrical appliances, in the course of the above two proposed emission metal box shielding plate, and lead to the outdoor antenna or farther away from the source areas. The circuit board in the actual test, using the whip antenna directly to a launch lock on the circuit board, when using the MP3 player as the source close to the transmitter MP3 player without interference, but the use of player or VCD player as the source close to the The board fired within three meters will not work, other sources not tested; but when using an outdoor antenna will not have the above phenomenon. In addition, the use of computers as the source should also be away from the transmitter, especially for stereo transmitter board, will generate noise. Outdoor antenna is best described using the Web site GP Min real antenna or horn antenna made by "half-wave dipole" antenna, 50 ohm coaxial cable with a radio frequency signal. Using a 1.5 m telescopic antenna than the original 1-meter board supporting the launch rod antenna distance increased significantly. (2) Power: As the emission current board's work more, for higher power requirements, requiring 18V power supply output current at the time of not less than 800 mA, and thus the power output is too small will not properly launch board work, such as laminated with two 9V batteries in series, the battery in a very short period of time will run out of power, DC power adapter is also required when the output current greater than 800 mA, operating voltage must be selected in 13.5 -18V. We use the test power supply with IC TL431 precision voltage reference is made. (3) on the drift of the solution: The three-kilometer board within a few minutes before the start of the temperature increase will be generated with a small range of frequency drift, and finally stabilized at a working frequency, more effective solutions are: A . The circuit CV2, CV4 adjustable into a fixed capacitance ceramic capacitors (high-frequency capacitance with black spots), the capacity for the 20-68P range. (Note: CV2 change the value of an impact on the transmission frequency) B. The heat sink is fixed to the metal chassis, and increase heat dissipation area, so that gives off heat as soon as possible, conditions for the installation of a small heat sink fan. There are two proposals on the three-kilometer board can effectively overcome the frequency drift caused by temperature.
